LZMQ-1 Diaphragm Cutting Machine: Hot-Tipped Knife for Orthodontic Film — image 1 of 5
Diaphragm Cutting Machine
LZMQ-1 Diaphragm Cutting Machine: Hot-Tipped Knife for Orthodontic Film
A benchtop hot-tipped film cutting machine that trims orthodontic diaphragms, splints, and retainer sheets quickly, with no dust and no noise.
SKU FD-LZMQ1-CUTMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 2–9
- $49.00
- 10–49
- $45.50
- 50+
- $42.50
Specification
- Voltage
- 110V/220V
- Actual Power
- 10W
- Size
- 180*125*200mm
- Weight
- 2kg
- Blade Material
- Steel
- Color
- White
Why this unit

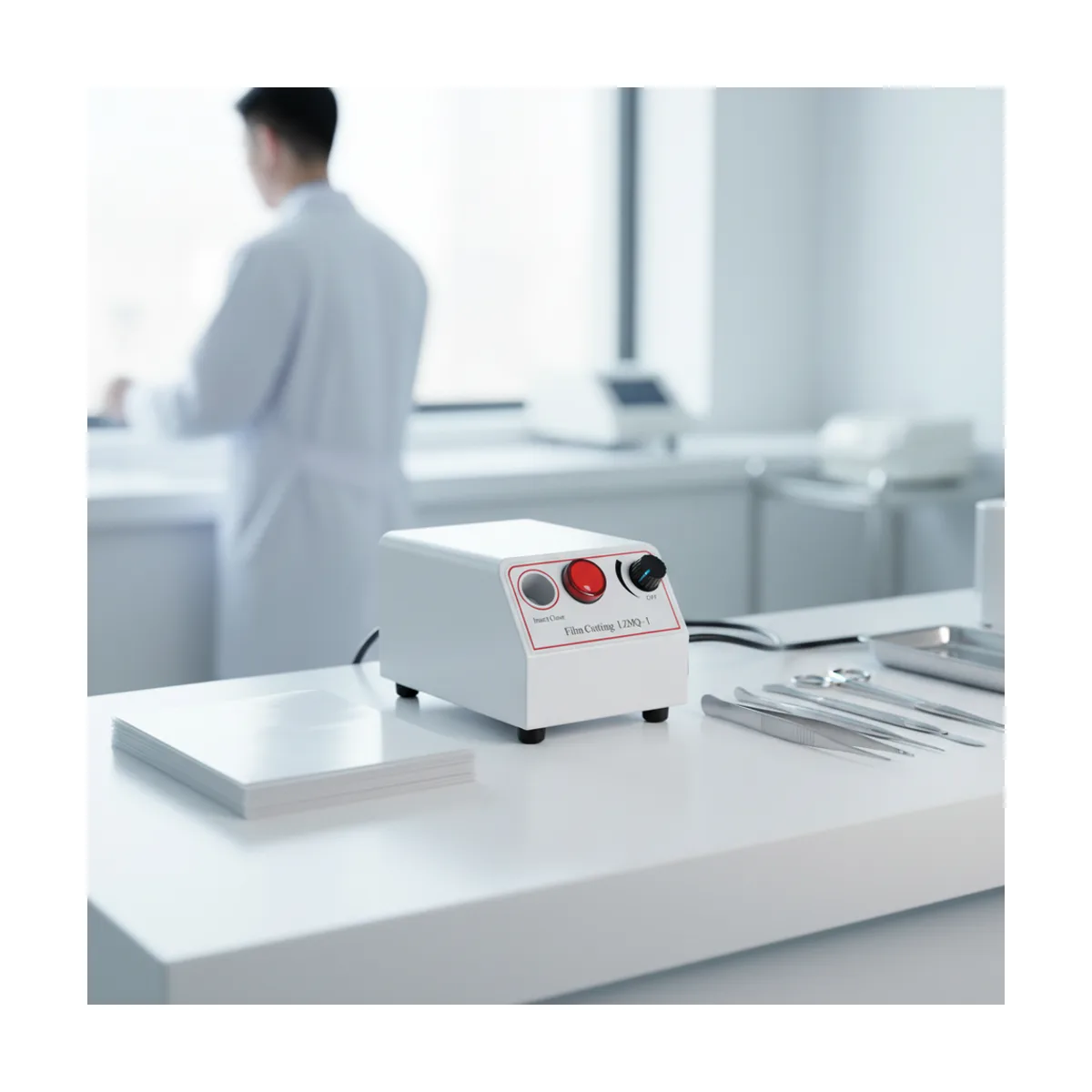

The LZMQ-1 is a benchtop diaphragm (pressure film) cutting machine for dental and orthodontic work. It uses an electrically heated knife tip to cut and shape thermoplastic sheets for retainers, splints, and mouth-guard diaphragms, replacing scissors and manual trimming.

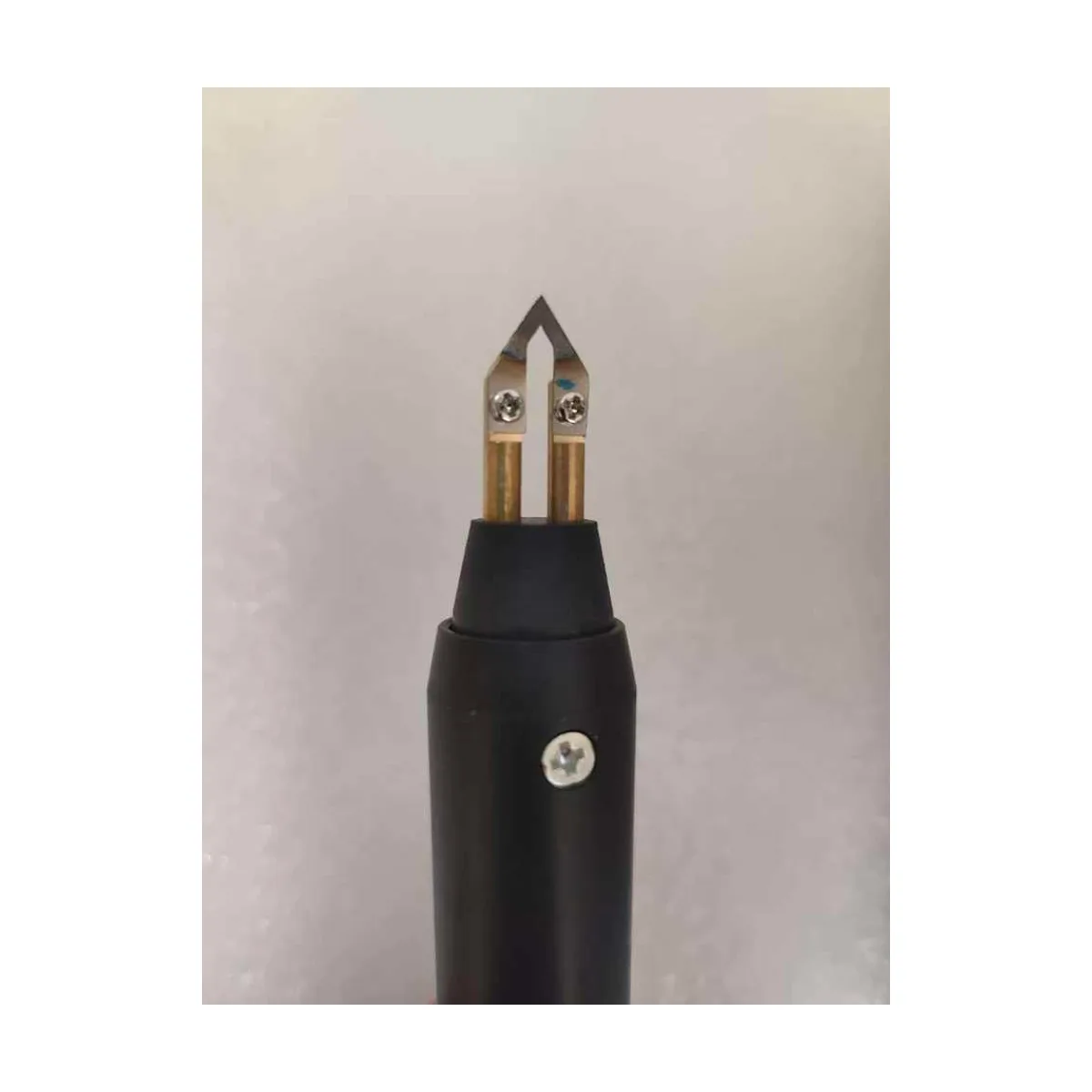

Plug in the unit and the red indicator lights up; the stainless steel knife tip heats within seconds, so there is almost no waiting. Cutting with a hot tip produces no dust and no noise, and the lightweight ergonomic handpiece is comfortable for extended trimming work. A safety switch in the handpiece holder stops heating the moment the pen is docked and reheats it as soon as it is picked up.

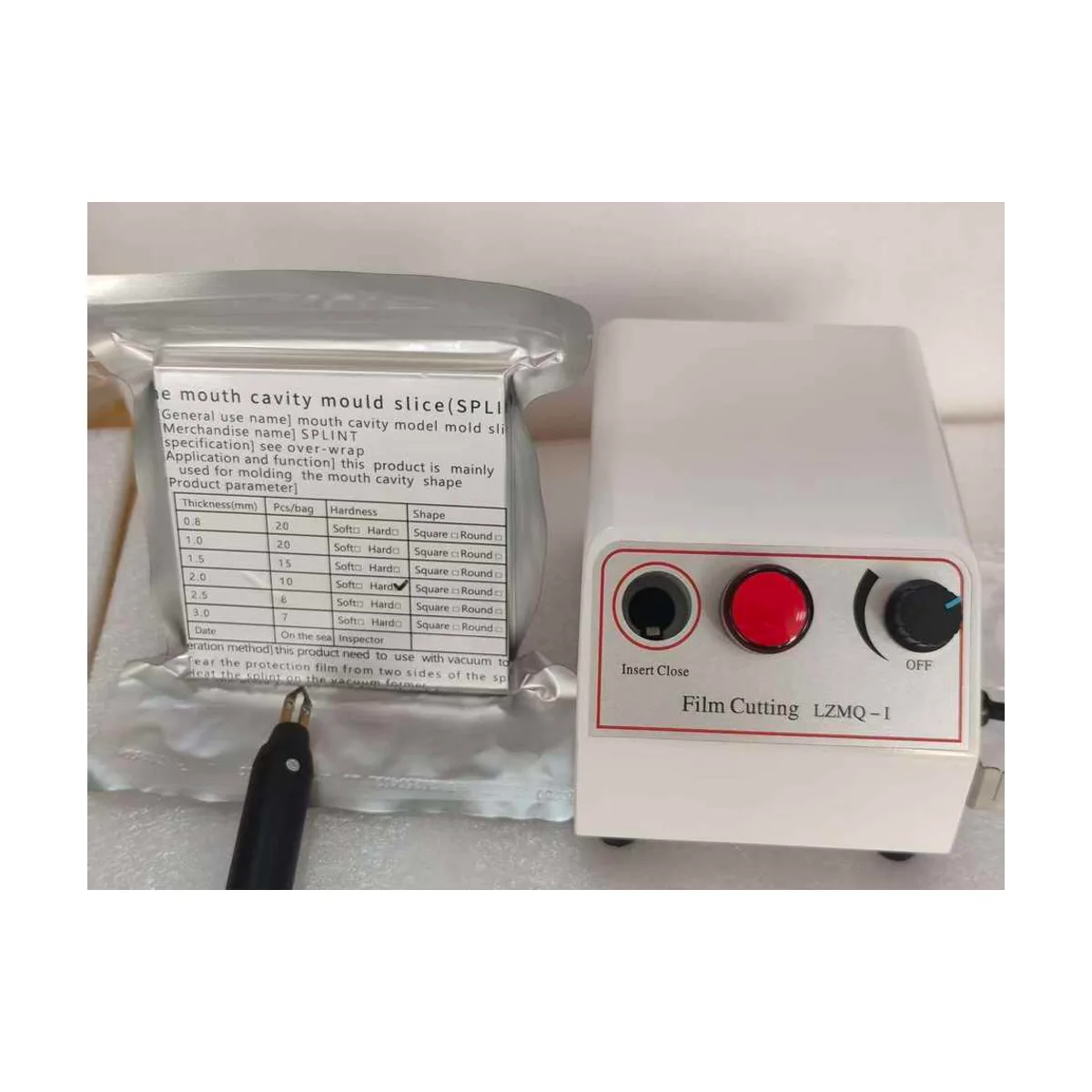

The front panel offers an Insert Close dock, power button, and adjustment dial, and a voltage selector on the unit allows 110V/220V switching. A built-in blade cleaner helps keep the tip clear during use. It suits dental labs and orthodontic practices finishing vacuum-formed appliances and diaphragm workpieces.
