ML-15 Wax Burnout Furnace: 2 kW Digital Control — image 1 of 5
Wax Burnout Furnace
ML-15 Wax Burnout Furnace: 2 kW Digital Control
Compact digital wax burnout (muffle) furnace for burning out wax patterns and preheating investment molds before casting.
SKU FD-ML15-BURNMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–9
- $160.00
- 10+
- $150.00
Specification
- Voltage
- 110 V / 220 V
- Rated current
- 18 A @ 110 V; 9 A @ 220 V
Why this unit

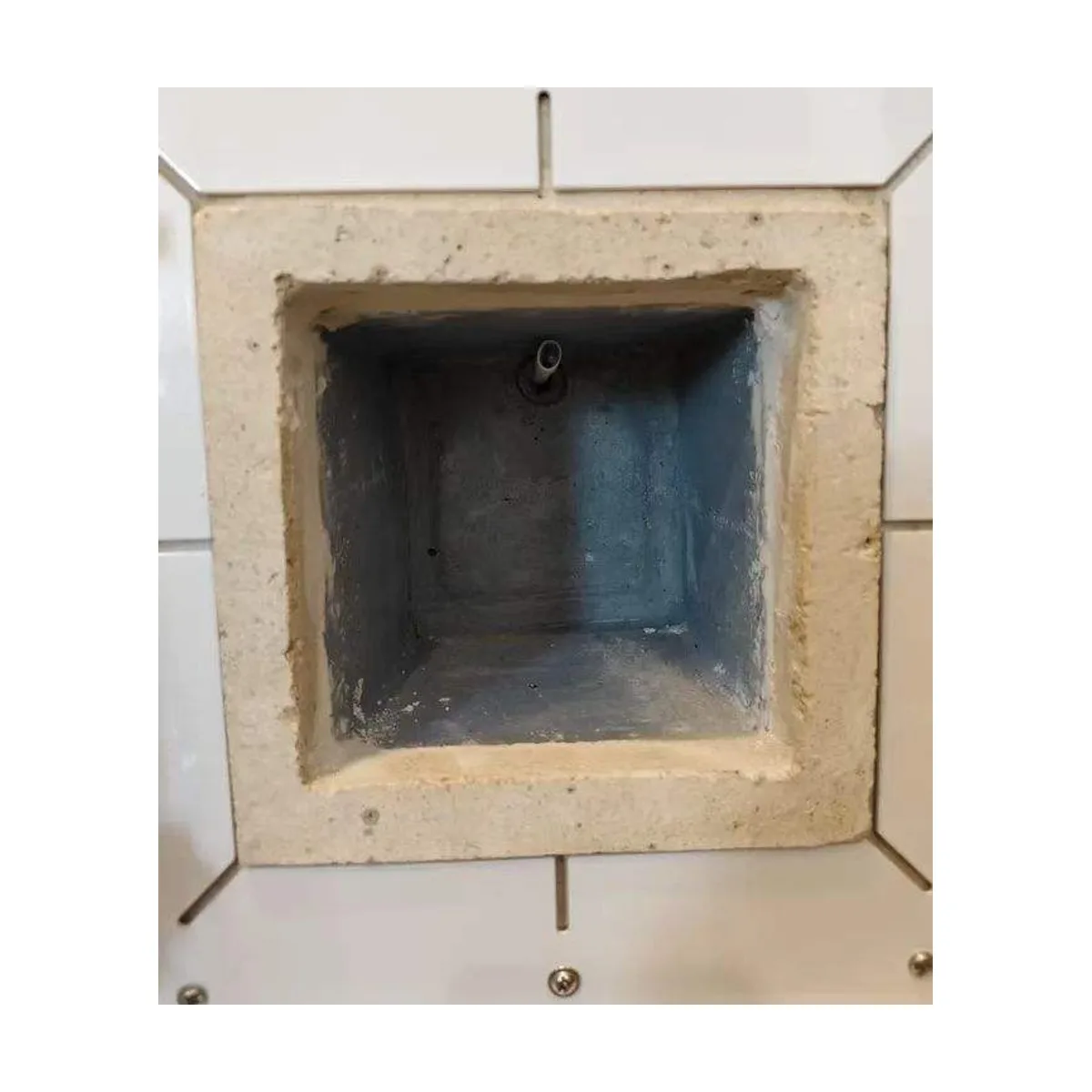

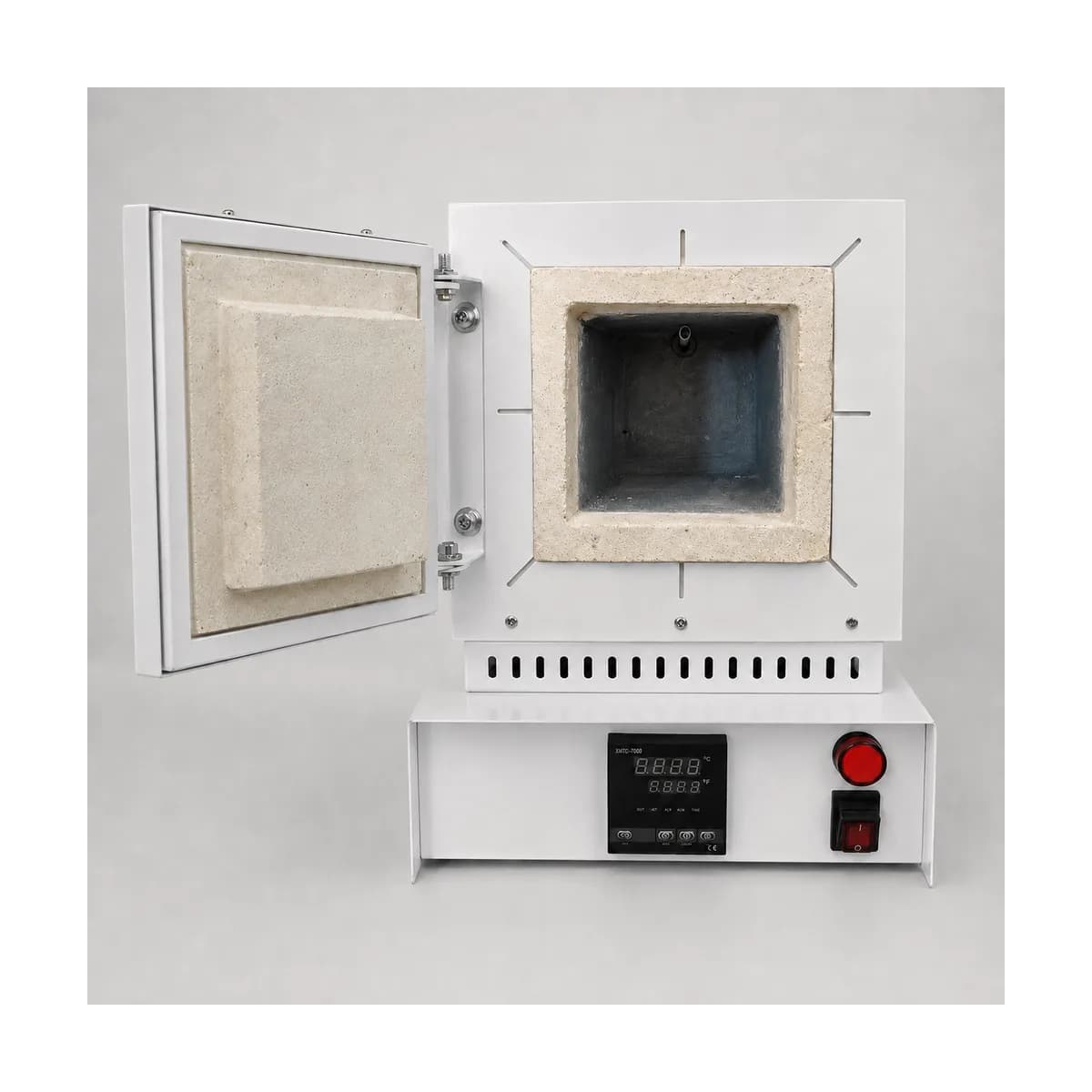

The ML-15 (Type VI) is a compact wax burnout furnace for the dental casting workflow. It burns wax out of invested molds and preheats them to casting temperature in a 120 mm cubic muffle chamber rated to 1100 °C.

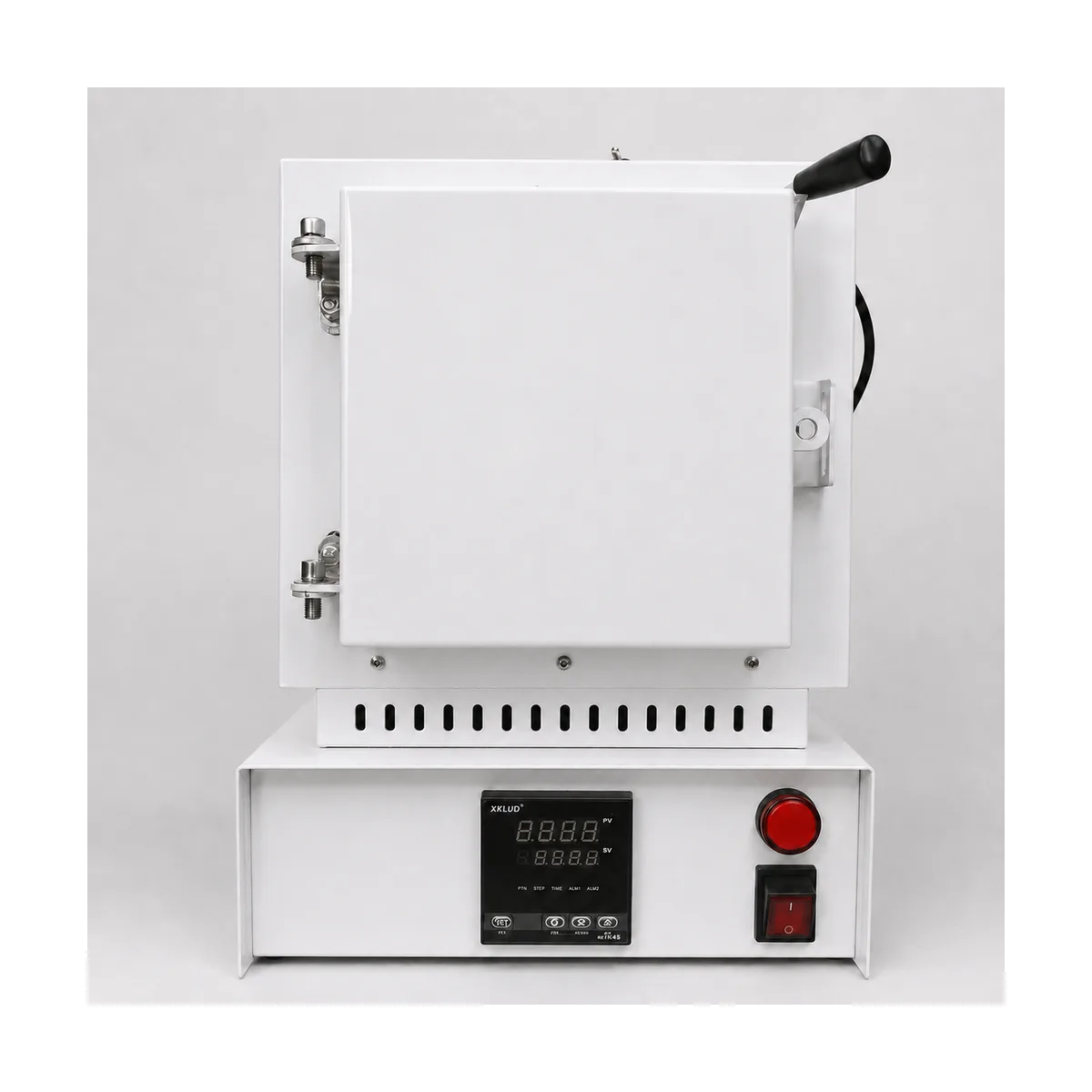

The chamber uses high-alumina insulation wool and high-temperature resistance wire for fast heat-up and long element life. A digital temperature controller on the front shows actual (PV) and set (SV) values, and the setpoint is entered with the SET and arrow keys anywhere from 0 to 1100 °C.
The unit is built for 110 V or 220 V supplies, drawing 18 A or 9 A respectively at its 2000 W rating, and its small footprint and low weight make it easy to place and move on a laboratory bench.
