PHOENIX-7 Porcelain Furnace: Vacuum Firing to 1200 °C — image 1 of 4
Porcelain Furnace
PHOENIX-7 Porcelain Furnace: Vacuum Firing to 1200 °C
Benchtop porcelain furnace with a lifting firing chamber, touchscreen controller and vacuum firing support for dental ceramics and glazing.
SKU FD-PHX7-PORCMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–4
- $1,400.00
- 5–9
- $1,350.00
- 10+
- $1,320.00
Specification
- Max heating rate
- 200 °C/min (392 °F/min)
- Max temperature
- 1200 °C / 2283 °F (C500 version); 1100 °C / 2012 °F (C300 version)
- Max hold time at top temperature
- 2 h 46 min
- Vacuum level setting
- 1–101 %
- Operating voltage
- 100–120 V 50/60 Hz; 230 V 50/60 Hz
- Current
- 14.5 A @ 110 V; 7.0 A @ 230 V
- Power
- Max 1500 W (excluding vacuum pump)
Why this unit

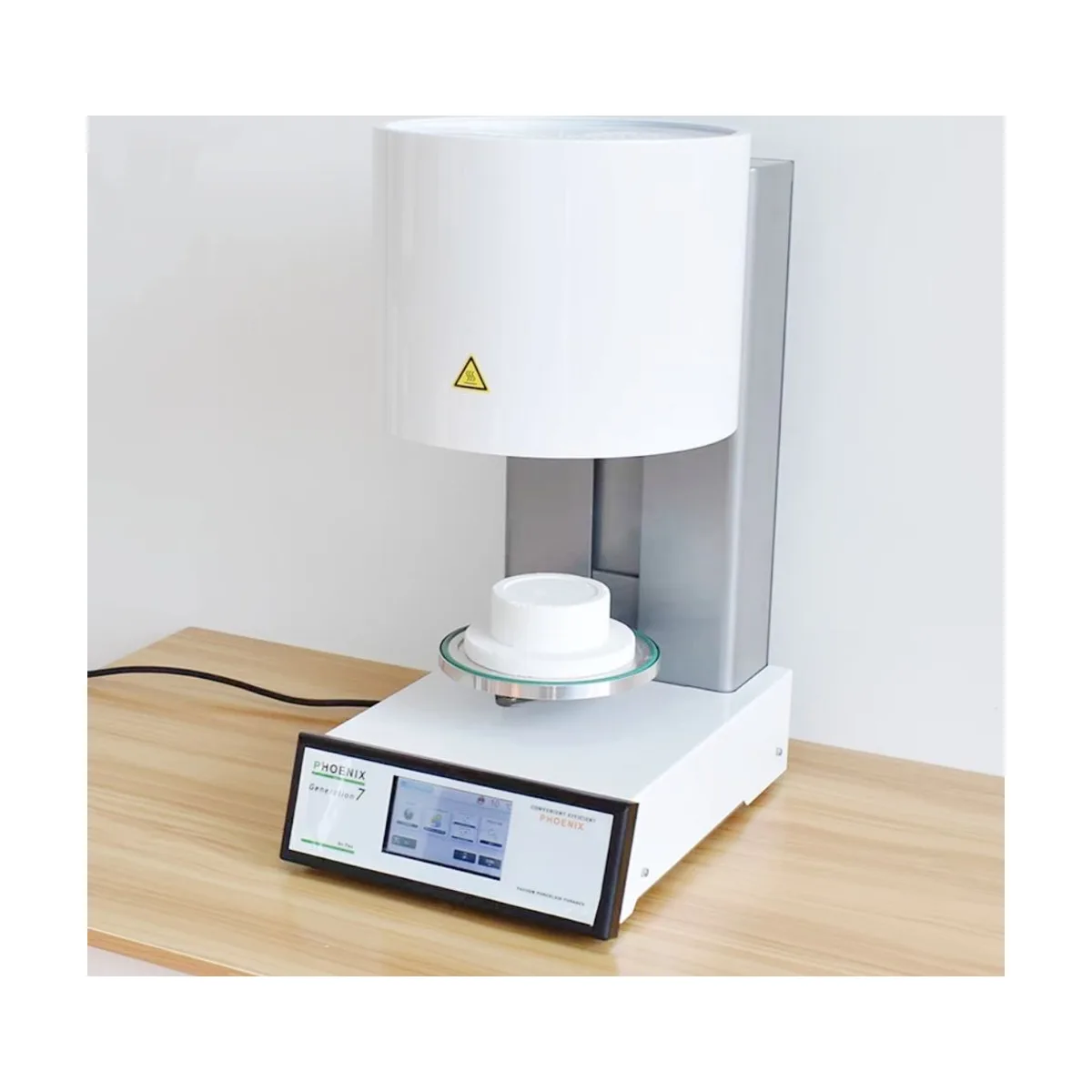

The PHOENIX-7 is a benchtop porcelain furnace for firing, staining and glazing dental ceramic work, including ceramic blocks and porcelain restorations. Workpieces sit on a round firing platform under a bell-shaped chamber that lowers over the work for each firing cycle.

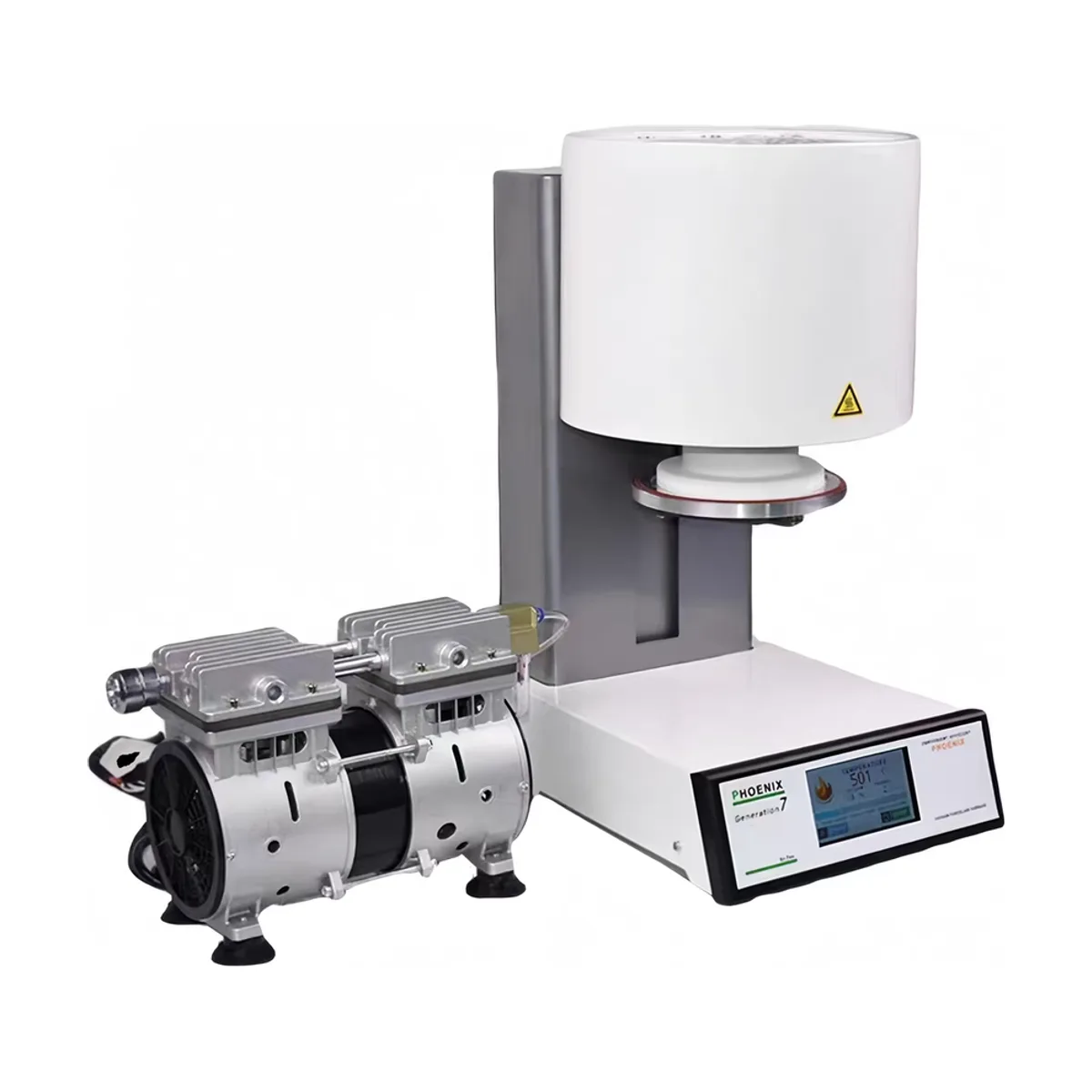

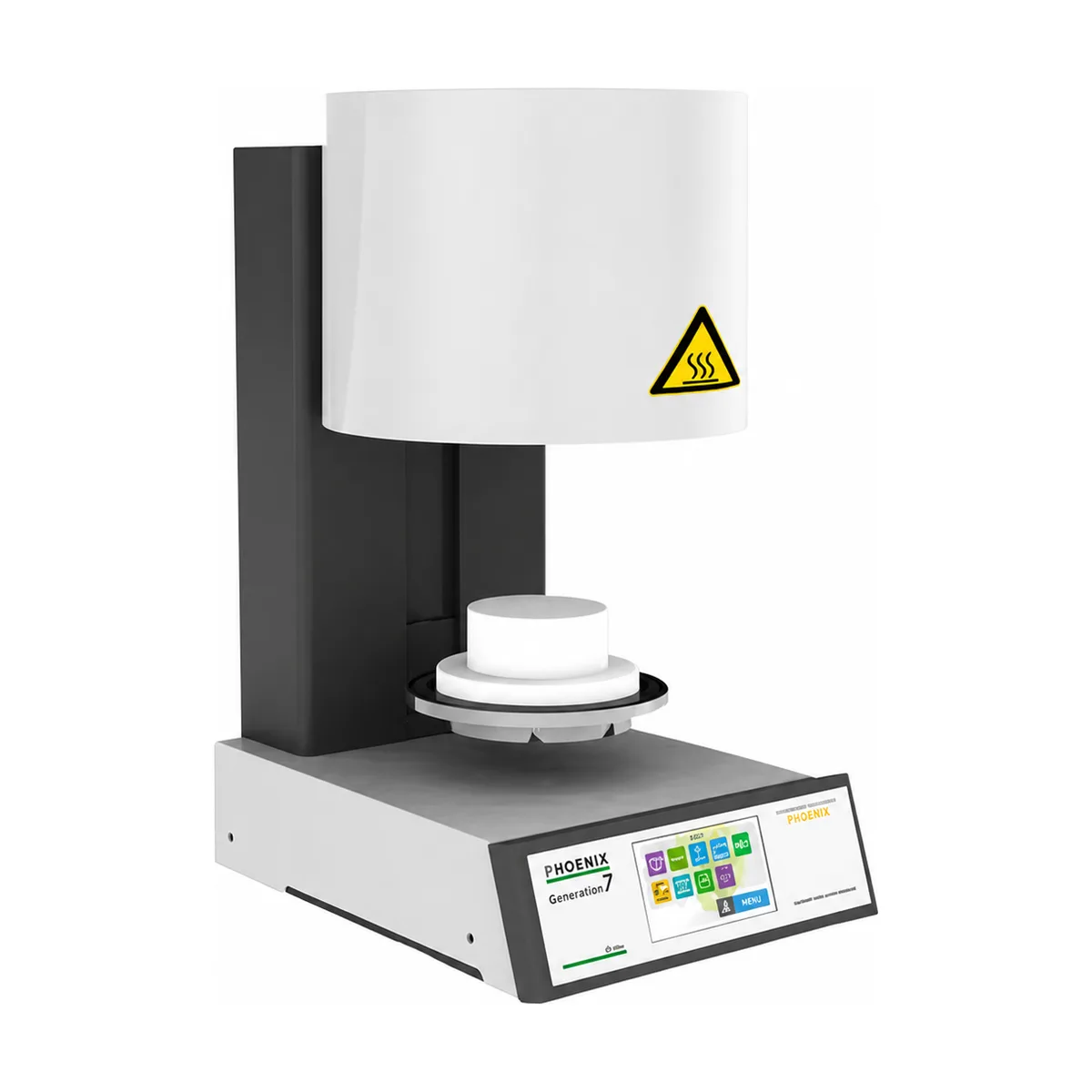

Programs are run from a color touchscreen on the base. The chamber heats at up to 200 °C per minute to a maximum of 1200 °C (1100 °C on the C300 version), and can hold top temperature for up to 2 hours 46 minutes. Vacuum firing is supported through an external vacuum pump, with the vacuum level adjustable from 1 to 101 percent.
The furnace runs on either 100–120 V or 230 V mains at 50/60 Hz and draws a maximum of 1500 W excluding the vacuum pump, so it fits a standard dental laboratory bench.
