LZJH-I Thermal Polymerizer: Automatic Water-Bath Curing Unit — image 1 of 4
Thermal Polymerizer
LZJH-I Thermal Polymerizer: Automatic Water-Bath Curing Unit
A benchtop water-bath heat polymerizer for curing dental acrylic resins with automatic constant-temperature control.
SKU FD-LZJH1-POLYMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–9
- $340.00
- 10+
- $315.00
Specification
- Power Supply
- AC 220V, 50Hz
- Power
- 3000W
- Temperature Range
- 0-399°C, automatic constant temperature (adjustable)
- Overall Dimensions
- 580×370×530 mm
- Inner Chamber Dimensions
- 400×250×310 mm
- Packing Dimensions
- 620×450×600 mm
- Net Weight
- 28 kg
Why this unit
The LZJH-I is a purpose-built unit for heat-polymerizing dental resin materials such as acrylic denture bases. Flasks are cured in a heated water bath inside the stainless steel chamber, which keeps the curing temperature even and stable.

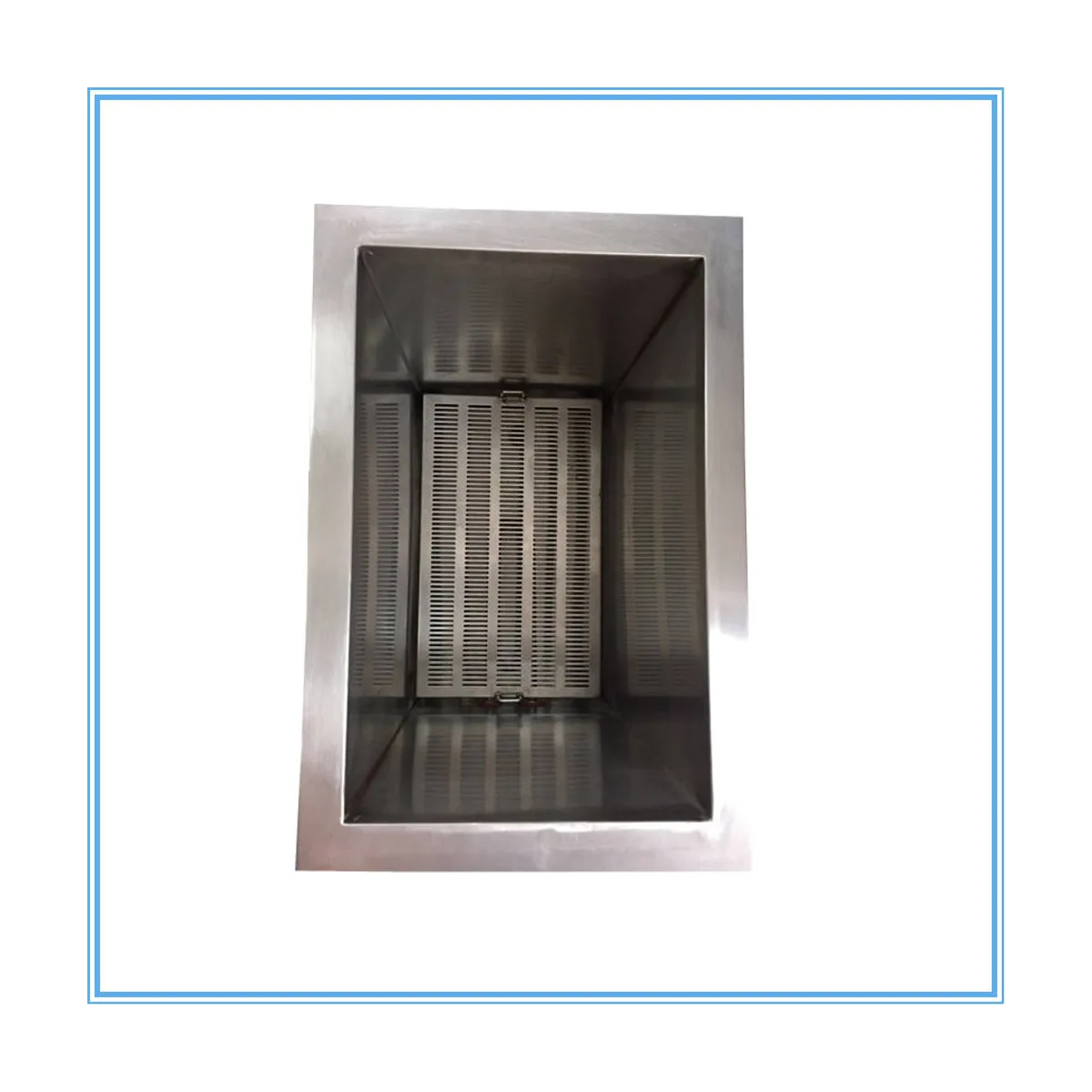

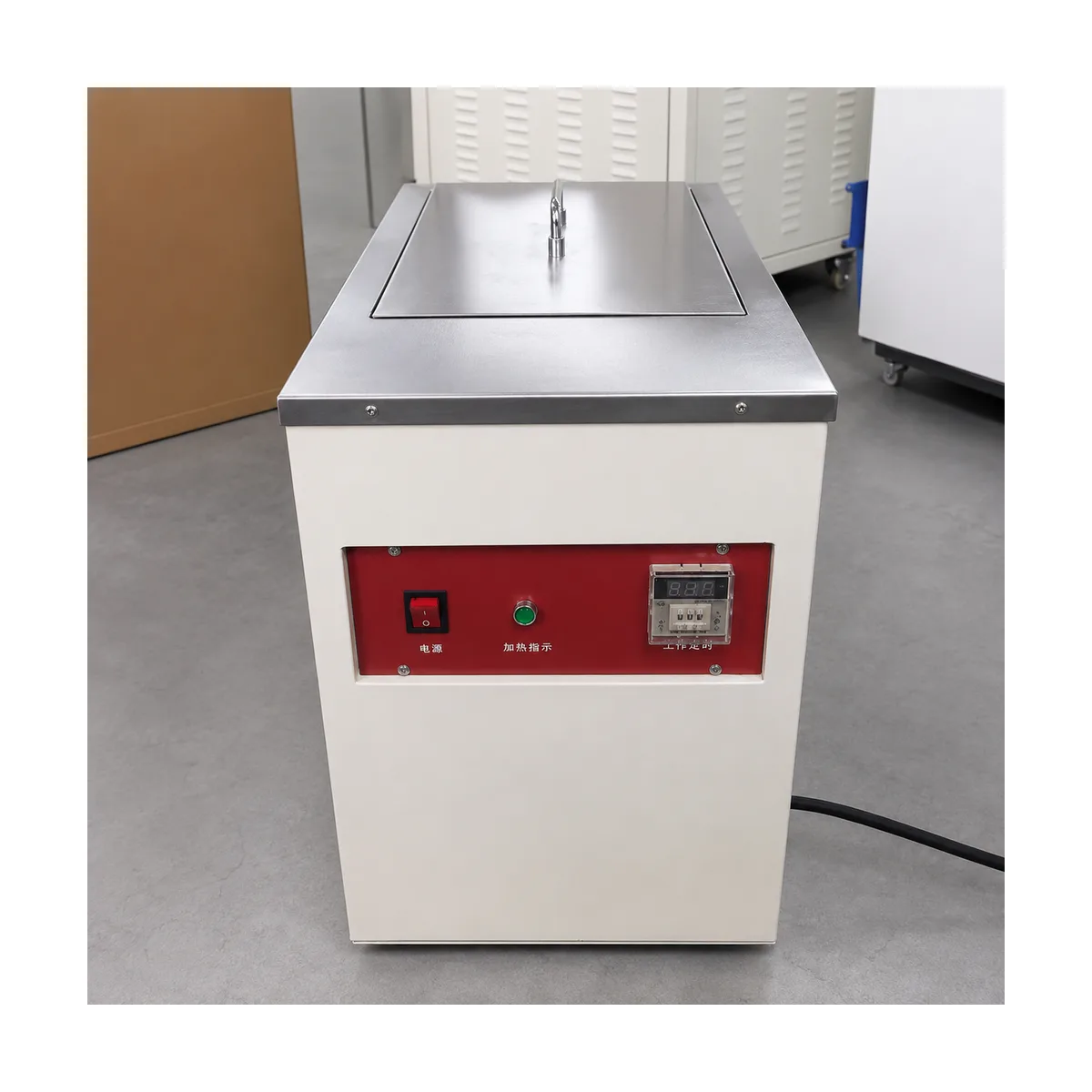

The front panel carries a power switch, a heating indicator and a digital temperature controller covering 0-399°C with automatic constant-temperature regulation; the set temperature is adjustable and ships preset to about 100°C. The inner chamber measures 400×250×310 mm, and a drain valve on the side empties the water tank. The tank must be filled with water before power-on; dry heating will damage the unit.
Because of thermal inertia, the manual recommends setting about 80% of the target temperature for the first cycles to avoid overshoot. Designed for dental laboratories processing heat-cure acrylic dentures, in a 5-40°C environment with humidity below 80%.
