LZ120-S1 Dental Lab Workstation: 1.2m Single Technician — image 1 of 5
Laboratory Workstation
LZ120-S1 Dental Lab Workstation: 1.2m Single Technician

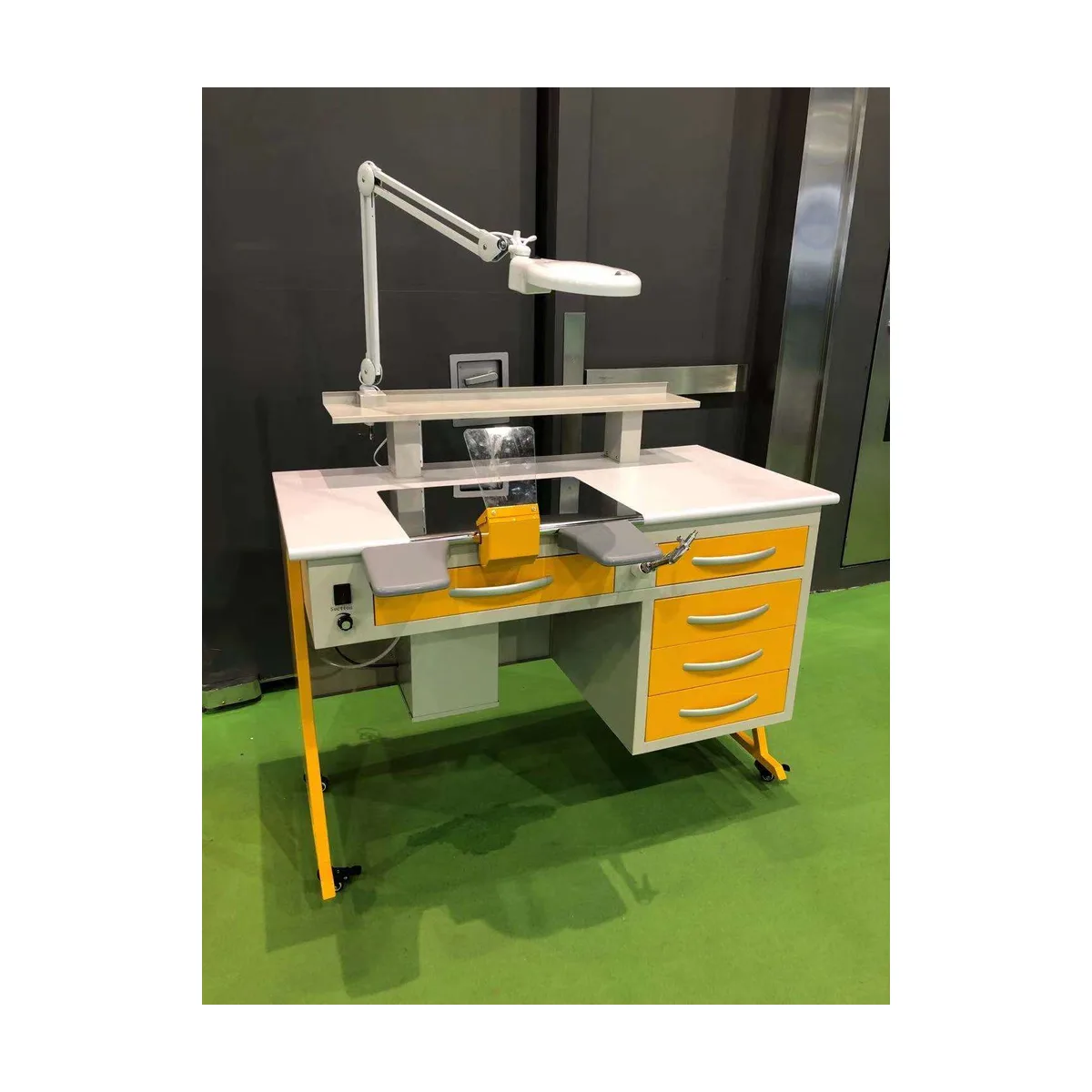

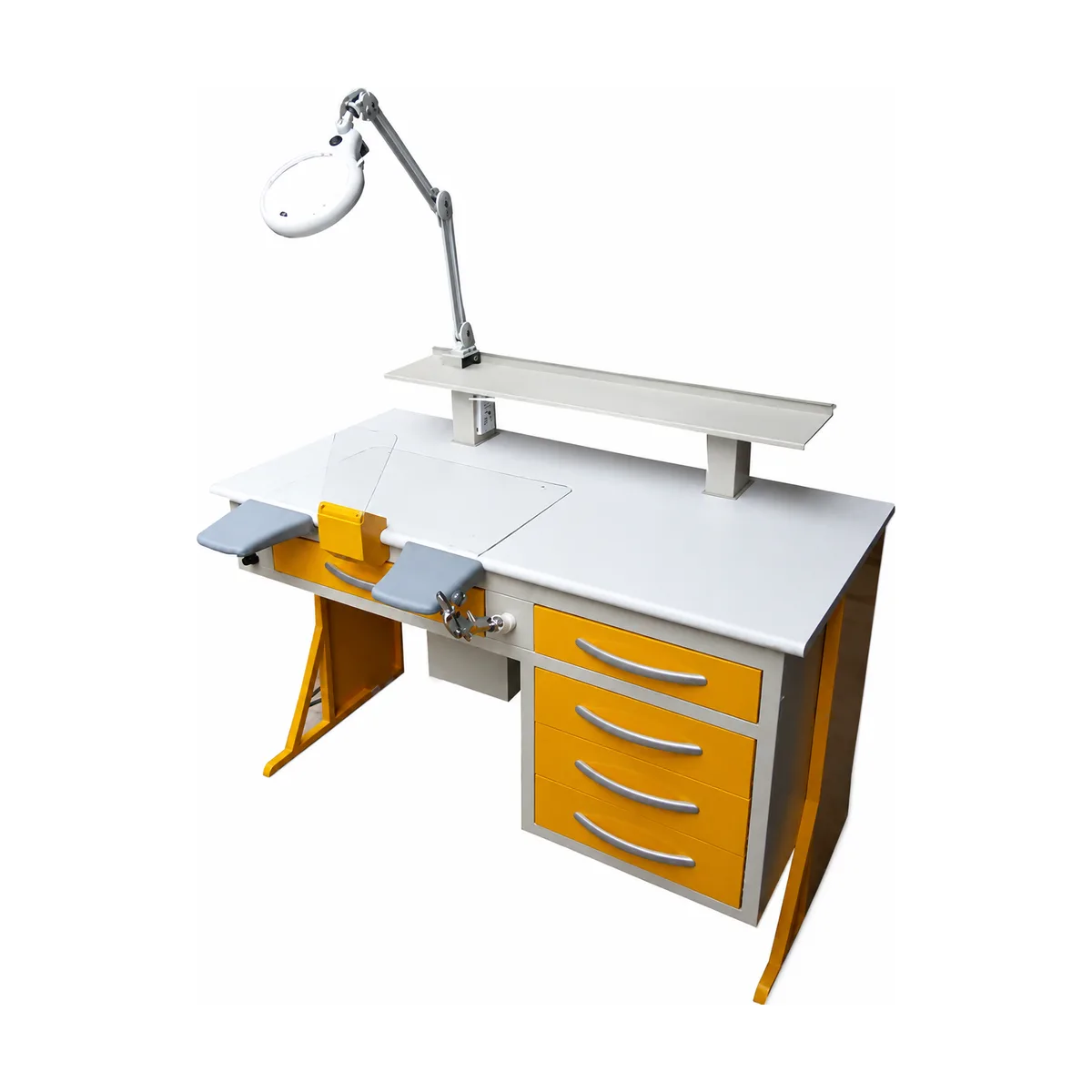

A 1.2 m single-technician dental lab bench that integrates a magnifying daylight lamp, adjustable dust extraction, an air gun and drawer storage in one cold-rolled steel workstation.
SKU FD-LZ120S1-WSMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–9
- $420.00
- 10+
- $400.00
Specification
- Workstation type
- Single-person, 1.2 m
- Footprint
- 120 x 60 cm
- Body material
- Cold-rolled steel, approx. 1.2 mm
- Worktop
- High-density fire-resistant laminated board
- Static load capacity
- Over 200 kg (frame)
- Power supply
- 220 V / 50 Hz ±10%
- Power
- 1000 W
- Noise level
- ≤90 dB
- Air supply
- Φ8 inlet, 0.4-0.6 MPa (max 0.8 MPa)
- Power sockets
- 1 set: one 2-pin + one 3-pin multi-standard outlet
- Lighting
- 1 daylight-type work lamp with magnifier
- Storage
- 4 storage drawers + 1 tool drawer, damping slides
- Dust extraction
- 1 suction port with adjustable-suction vacuum system
- Gross weight
- Approx. 130 kg
Why this unit
The LZ120-S1 is a self-contained workstation for one dental technician. The cold-rolled steel body (approx. 1.2 mm sheet) carries a high-density fire-resistant laminated worktop that tolerates cleaning, disinfection and acid or alkali exposure, with rounded edges and a static frame load rating above 200 kg. A movable stainless steel plate covers the main working area.

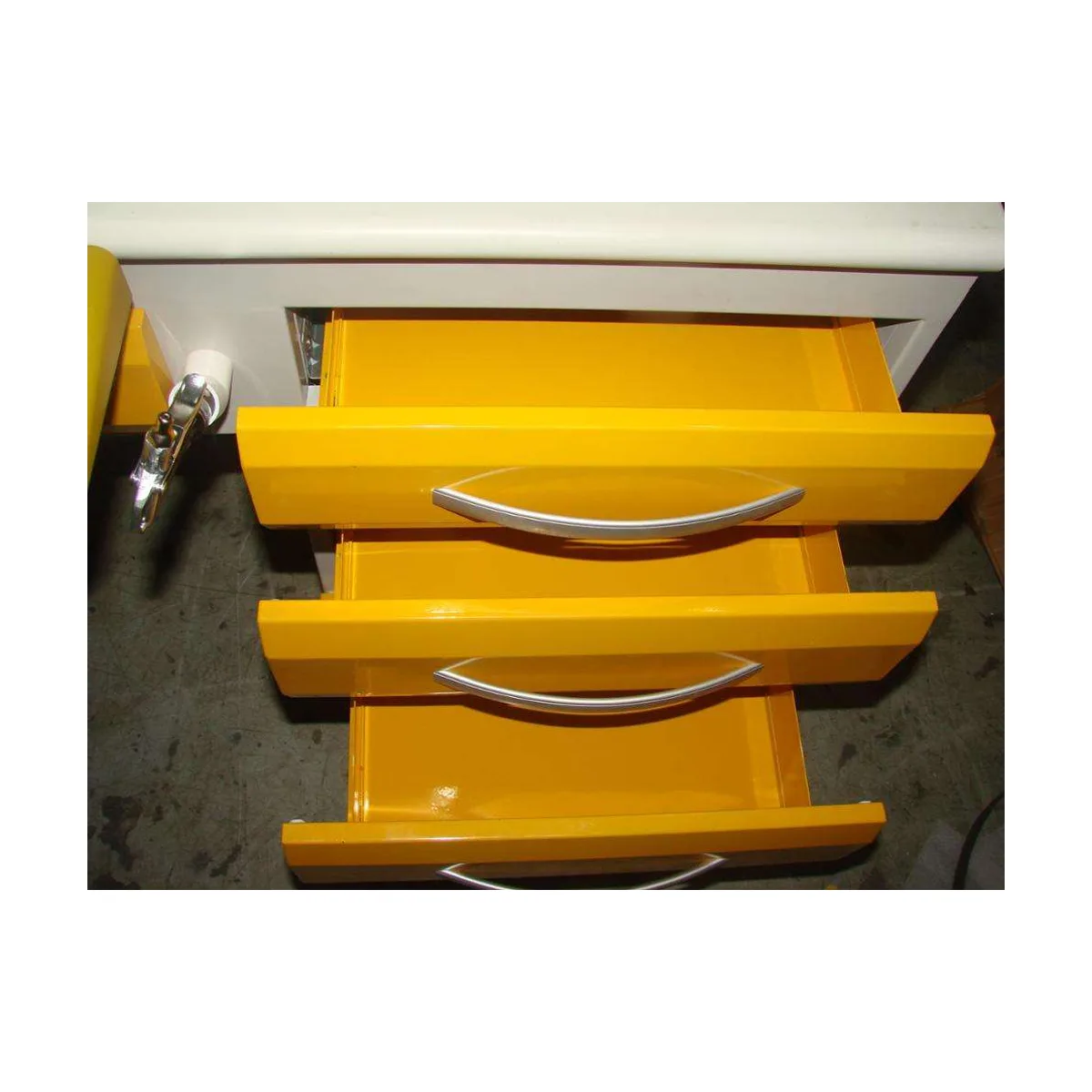

Everything the technician reaches for is built in: a daylight-type work lamp with magnifier on an articulated arm, a dust suction port with adjustable suction controlled from a switch on the left side of the station, an auto-return air gun fed by an 8 mm air line at 0.4-0.6 MPa, removable armrests, and a multi-standard socket set (one 2-pin and one 3-pin outlet). Storage comes from four storage drawers plus one tool drawer, all on damping slides.

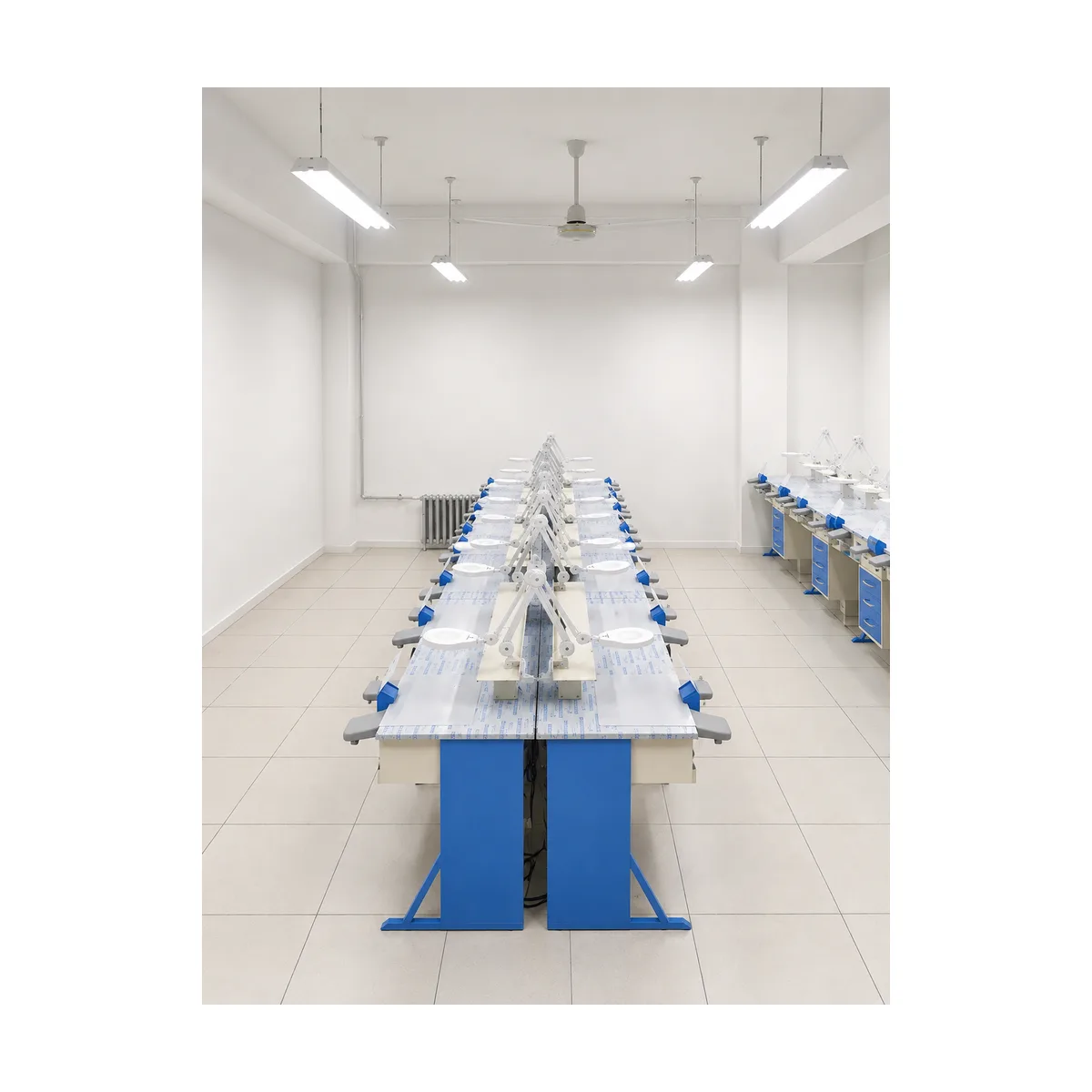

The 1.2 m footprint suits compact dental laboratories, in-clinic lab corners and training rooms. Typical work at the bench includes crown and bridge fabrication, denture production, polishing, grinding and other finishing procedures where dust capture and magnified lighting matter.
