Stainless Sedimentation Tank
LZ Stainless Steel Gypsum Sedimentation Tank: Large 60 cm
A large stainless steel under-bench tank that settles gypsum and wax solids out of dental lab wastewater before it reaches the drain.
SKU FD-SST-LRGMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–4
- $150.00
- 5–9
- $138.00
- 10+
- $120.00
Specification
- Material
- Stainless steel

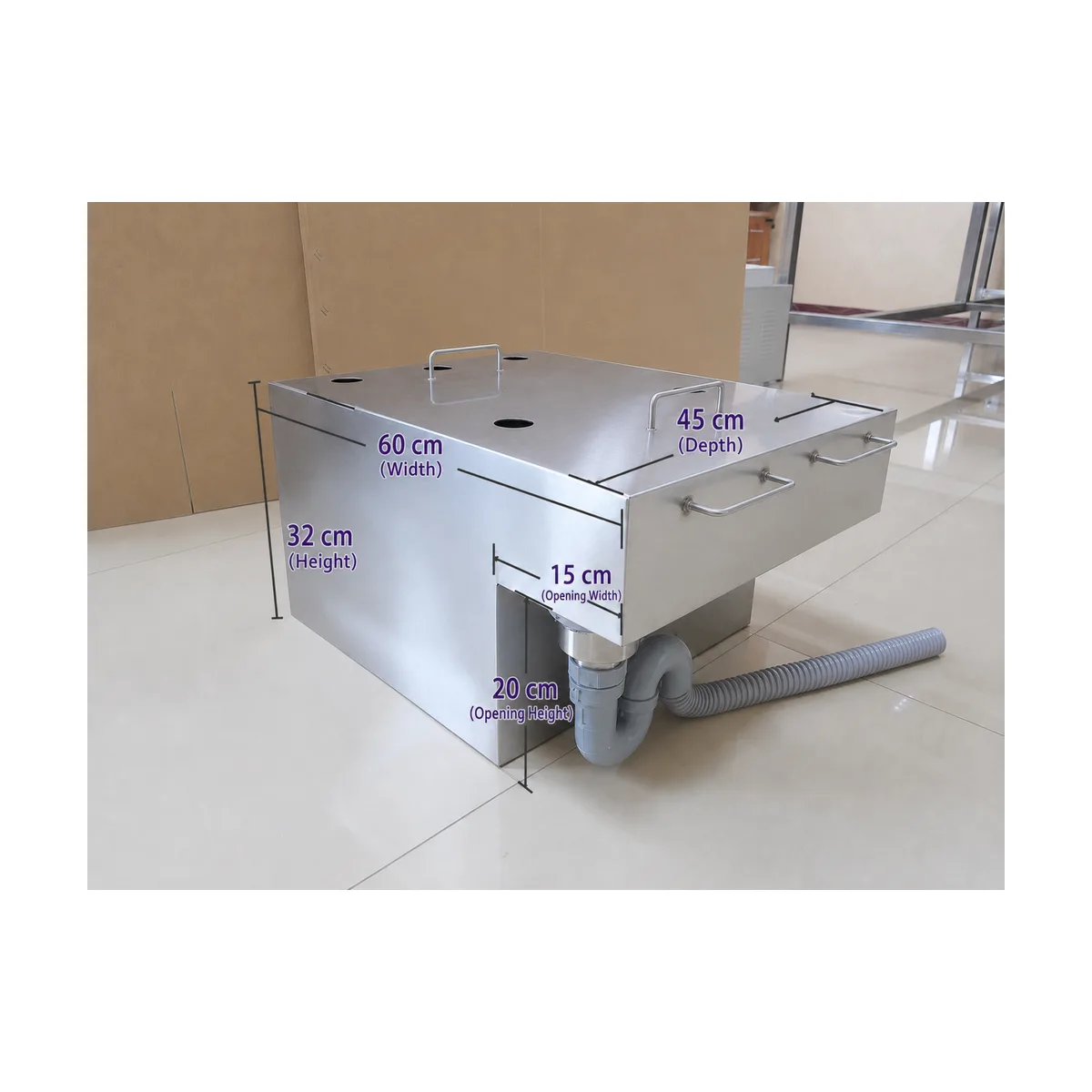

- Dimensions
- 60 x 45 x 32 cm
- Weight
- Approx. 12 kg
- Drain opening
- 15 x 20 cm
- Filter stages
- 3 internal settling channels
- Inlet positions
- 3 pre-drilled holes on first channel cover, 2 on second channel cover
Why this unit

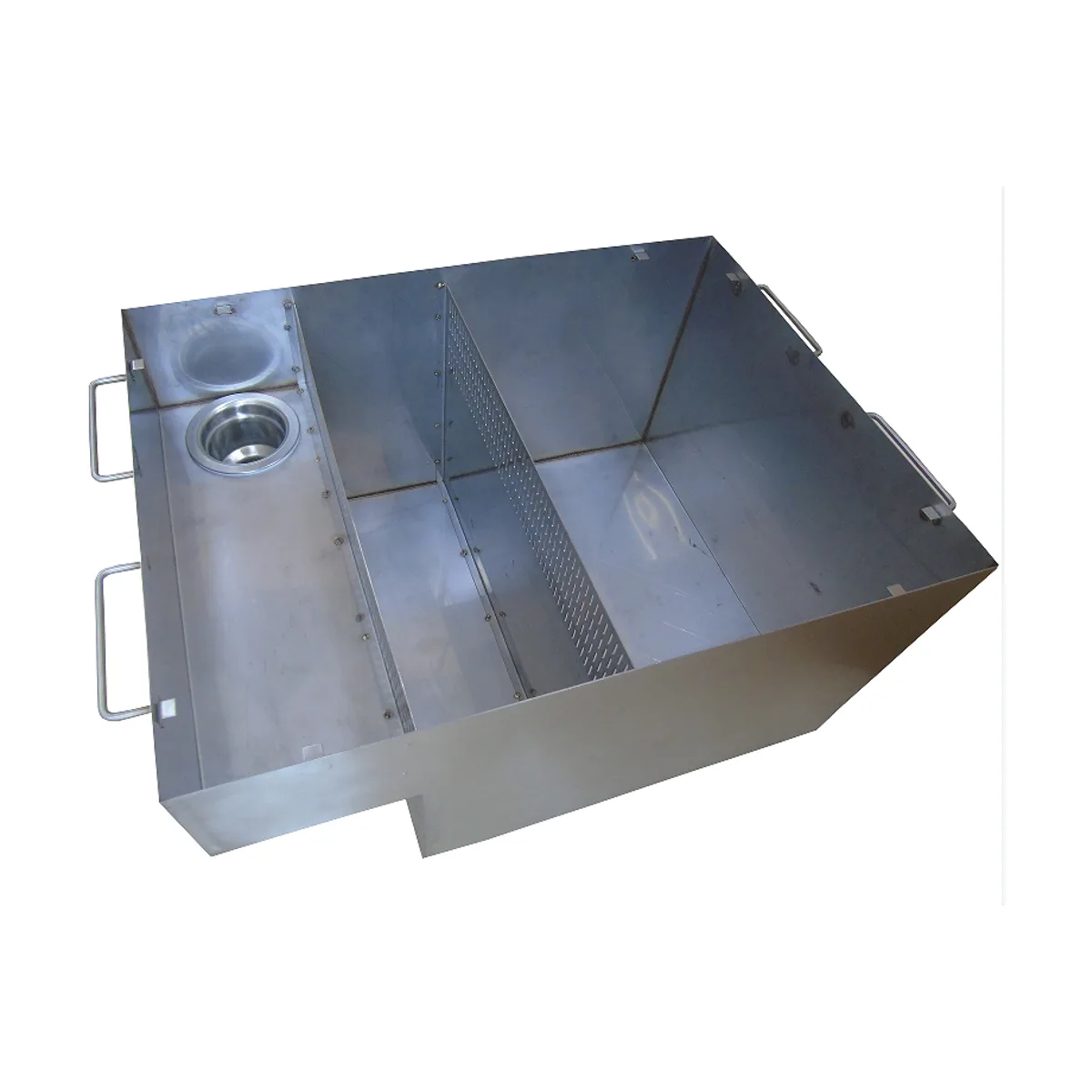

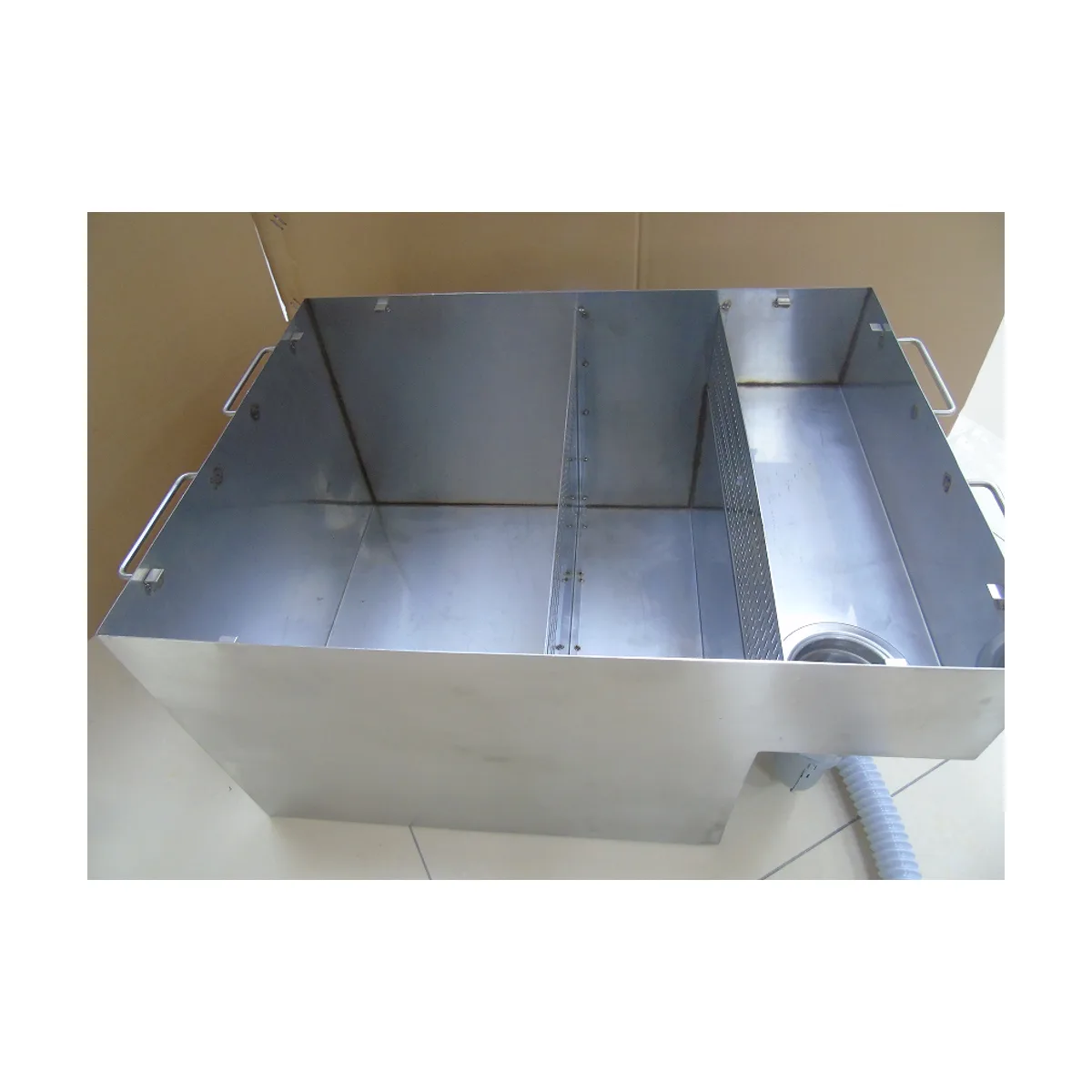

This stainless steel sedimentation tank sits between the model-room sink and the drain line. Wastewater carrying gypsum, plaster and wax residue enters through the lid, and solids settle out as the water passes through three internal filter channels, so the drain receives clarified water instead of slurry that would block the pipework.

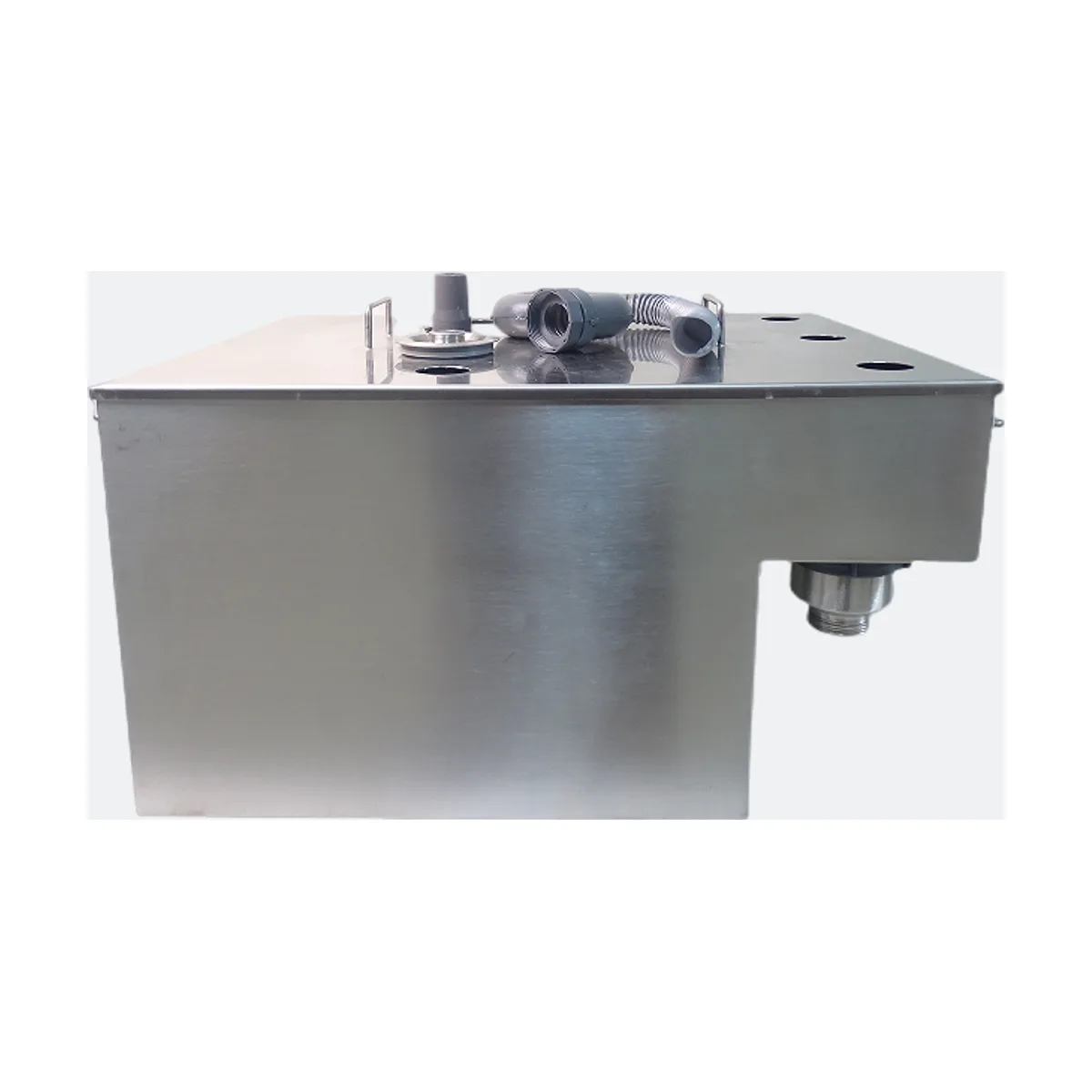

The first channel cover is pre-drilled with three inlet positions; the drain hose from the sink is pushed through whichever hole is most convenient, or two to three hoses can be connected at once. The second channel cover offers two further positions, which can be used for a cleaner inlet line or left unused so water simply cascades through the three channels. A bottom drain outlet with a flexible hose carries the filtered water away, and carry handles on the body make the tank easy to pull out.
The tank is sized 60 x 45 x 32 cm for placement under a workstation or beside the plaster bench. Regular cleaning on a usage-based schedule is recommended, with normal safety care during handling.
