LZ175-S3 Dental Lab Workstation: 1.75m Two-Person — image 1 of 3
Laboratory Workstation

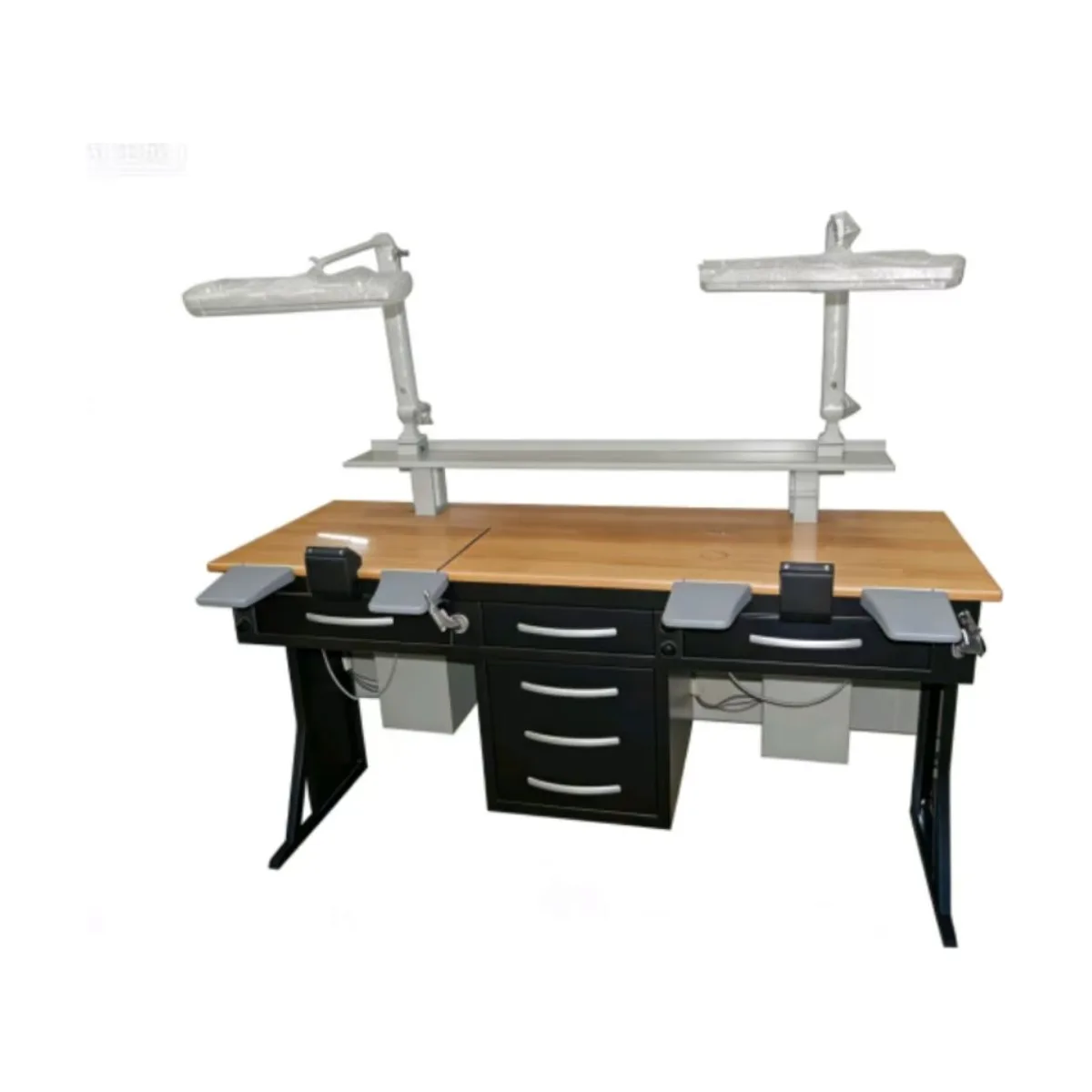

LZ175-S3 Dental Lab Workstation: 1.75m Two-Person
A 1.75 m two-technician dental lab bench with dual magnifying lamps, dual dust extraction and dual air guns on a cold-rolled steel frame.
SKU FD-LZ175S3-WSMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–9
- $590.00
- 10+
- $565.00
Specification
- Workstation type
- Two-person, 1.75 m
- Dimensions
- 175 x 60 x 80 cm
- Body material
- Cold-rolled steel, approx. 1.2 mm
- Worktop
- High-density fire-resistant laminated board
- Static load capacity
- Over 200 kg (frame)
- Power supply
- 220 V / 50 Hz ±10%
- Noise level
- ≤90 dB
- Air supply
- Φ8 inlet, 0.4-0.6 MPa (max 0.8 MPa)
- Power sockets
- 2 sets: one 2-pin + one 3-pin multi-standard outlet each
- Lighting
- 2 daylight-type work lamps
- Storage
- 4 storage drawers + 2 tool drawers, damping slides
- Dust extraction
- 2 suction ports with 2 adjustable-suction vacuum systems
- Air guns
- 2 auto-return air guns
- Gross weight
- Approx. 125 kg
Why this unit
The LZ175-S3 doubles the single-station concept into a 1.75 m bench where two technicians work side by side without sharing tools. Each station gets its own daylight-type work lamp, auto-return air gun, dust suction port with adjustable suction, pair of removable armrests and a multi-standard socket set (one 2-pin and one 3-pin outlet per set).
The all-metal body is built from cold-rolled steel sheet of approx. 1.2 mm with a frame static load rating above 200 kg. The high-density fire-resistant laminated worktop withstands cleaning, disinfection and acid or alkali exposure, and each working area carries a movable stainless steel plate. Storage is split between four storage drawers and two tool drawers, all running on damping slides. Both vacuum systems connect to 8 mm air lines at 0.4-0.6 MPa, with suction switches on the left side of each station.
At 175 x 60 x 80 cm it fits small and mid-sized dental laboratories that need two fully equipped positions for crown and bridge, denture, polishing and grinding work without the footprint of two separate benches.
