LZGQ-II High-Speed Cutting Lathe: Dental Metal Grinder — image 1 of 4
High-Speed Cutting Lathe

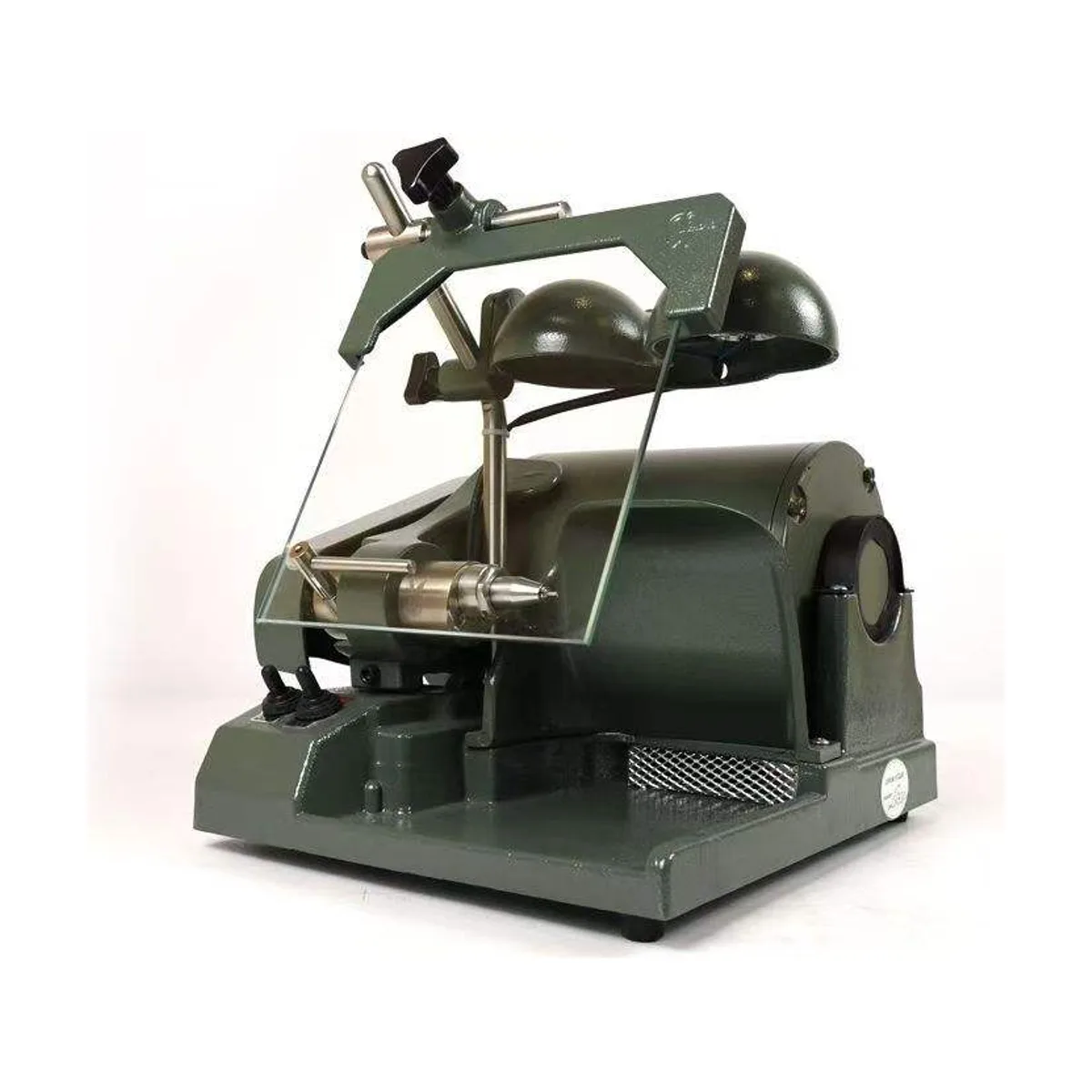

LZGQ-II High-Speed Cutting Lathe: Dental Metal Grinder
A benchtop high-speed dental lab cutting lathe with an imported Eagle-brand head for fast cutting, grinding, and polishing of metal workpieces.
SKU FD-LZGQ2-GRNDMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–9
- $380.00
- 10–49
- $360.00
- 50+
- $340.00

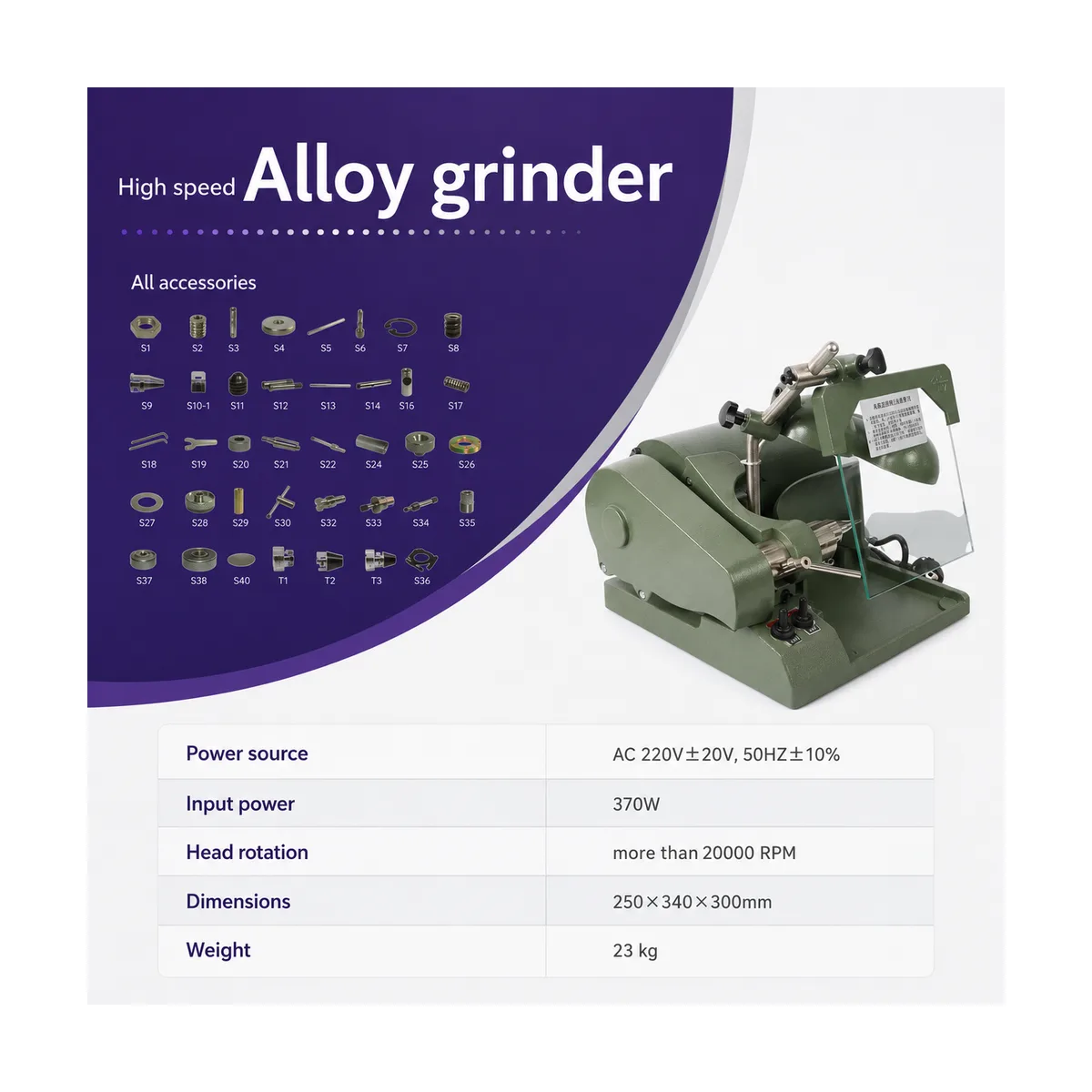

Specification
- Power supply
- AC 220V±20V, 50Hz±10%
- Input power
- 370W
- Spindle speed
- >20,000 rpm
- Overall dimensions
- 250×340×300 mm
- Net weight
- 23 kg
Why this unit
The LZGQ-II is a high-speed cutting lathe for dental laboratories, built around an imported Eagle-brand spindle head that spins at more than 20,000 rpm. It is designed for fast cutting of metal workpieces and can also be used for grinding and polishing operations on the same station.

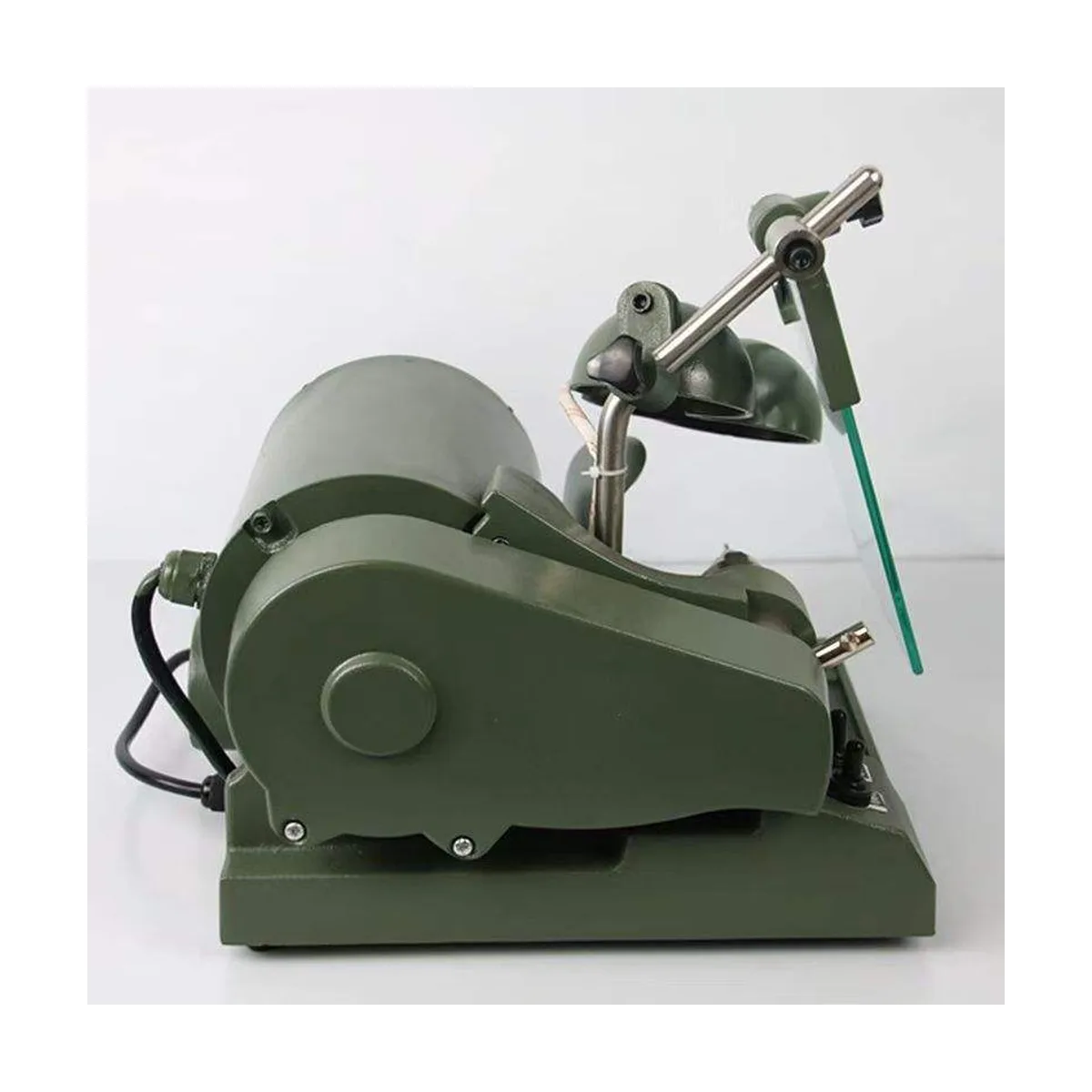

The machine consists of a drive mechanism, a dedicated fixture with a friction clutch and four-jaw collet, a machine base, a protective shield, dust suction, work lighting, and an electric control section. The collet can be loaded and unloaded while the spindle is turning by operating the clutch handle, which speeds up tool changes between cutting, grinding, and polishing steps.
It is intended for dental technician benches working on metal frameworks and cast restorations. The manufacturer notes that a new head must be run in for 20 minutes with a mandrel fitted before normal use, and the motor must never be started without a bur or mandrel seated in the head.
