LZPG-II Single-Top Polishing Lathe: Grinding Wheel and Buffing Spindle — image 1 of 5
Single-Top Polishing Lathe
LZPG-II Single-Top Polishing Lathe: Grinding Wheel and Buffing Spindle
A benchtop single-top dental polishing machine pairing an abrasive grinding wheel with a tapered buffing spindle for denture and metal polishing.
SKU FD-LZPG2-1TOPMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 10–24
- $78.20
- 25–49
- $74.80
- 50+
- $71.99
Specification
- Rated voltage
- 220V±20V
- Rated frequency
- 50Hz±10%
- Input power
- 550W
- Synchronous speed
- 3000 r/min
- Safe line speed
- 35 m/s
Why this unit

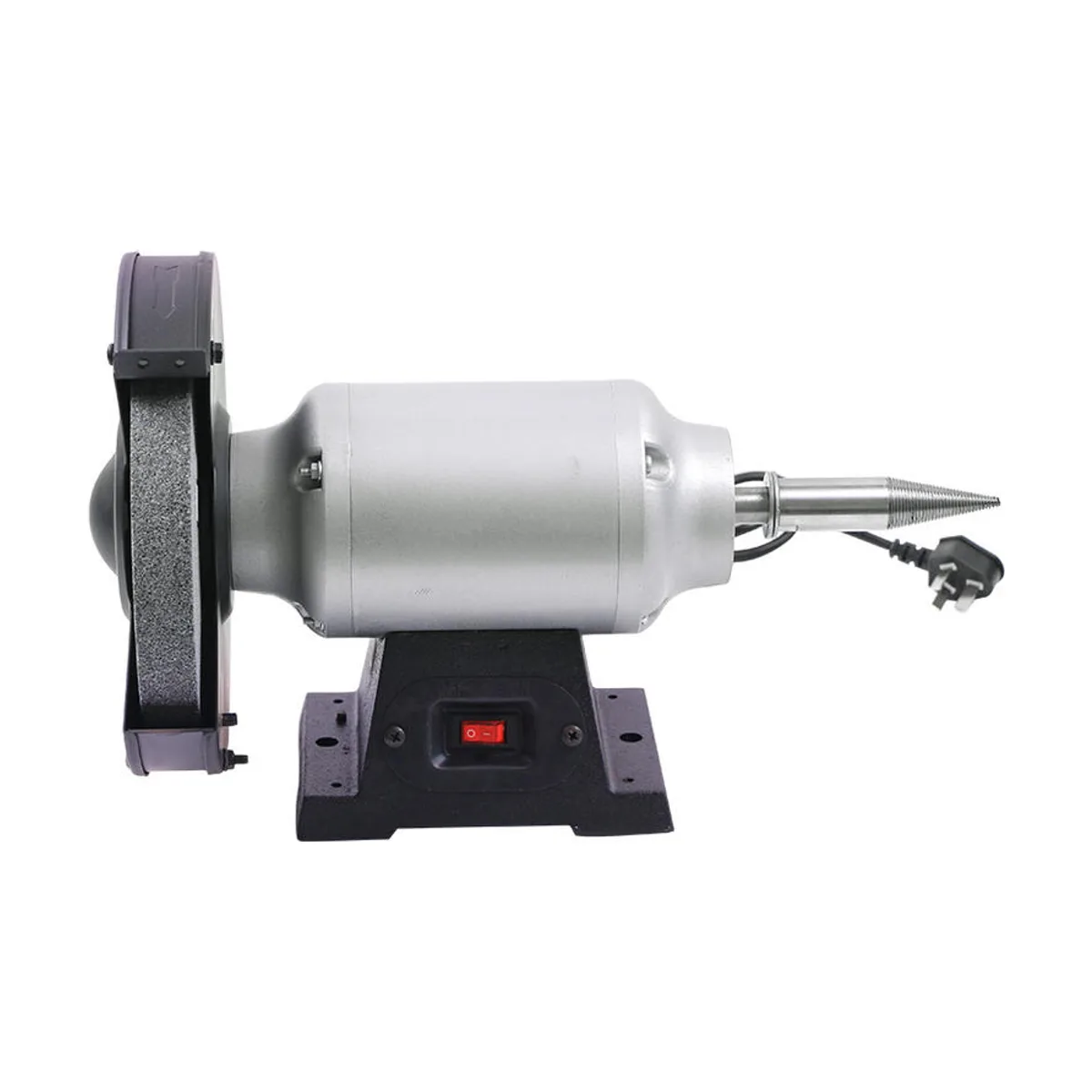

The LZPG-II is a single-top bench polishing machine for dental laboratories, used for grinding and polishing dentures, plastic workpieces, and various metals. The left station carries an abrasive grinding wheel that cuts aggressively and handles many metals, while the right side is a tapered threaded spindle for cloth buffing wheels.

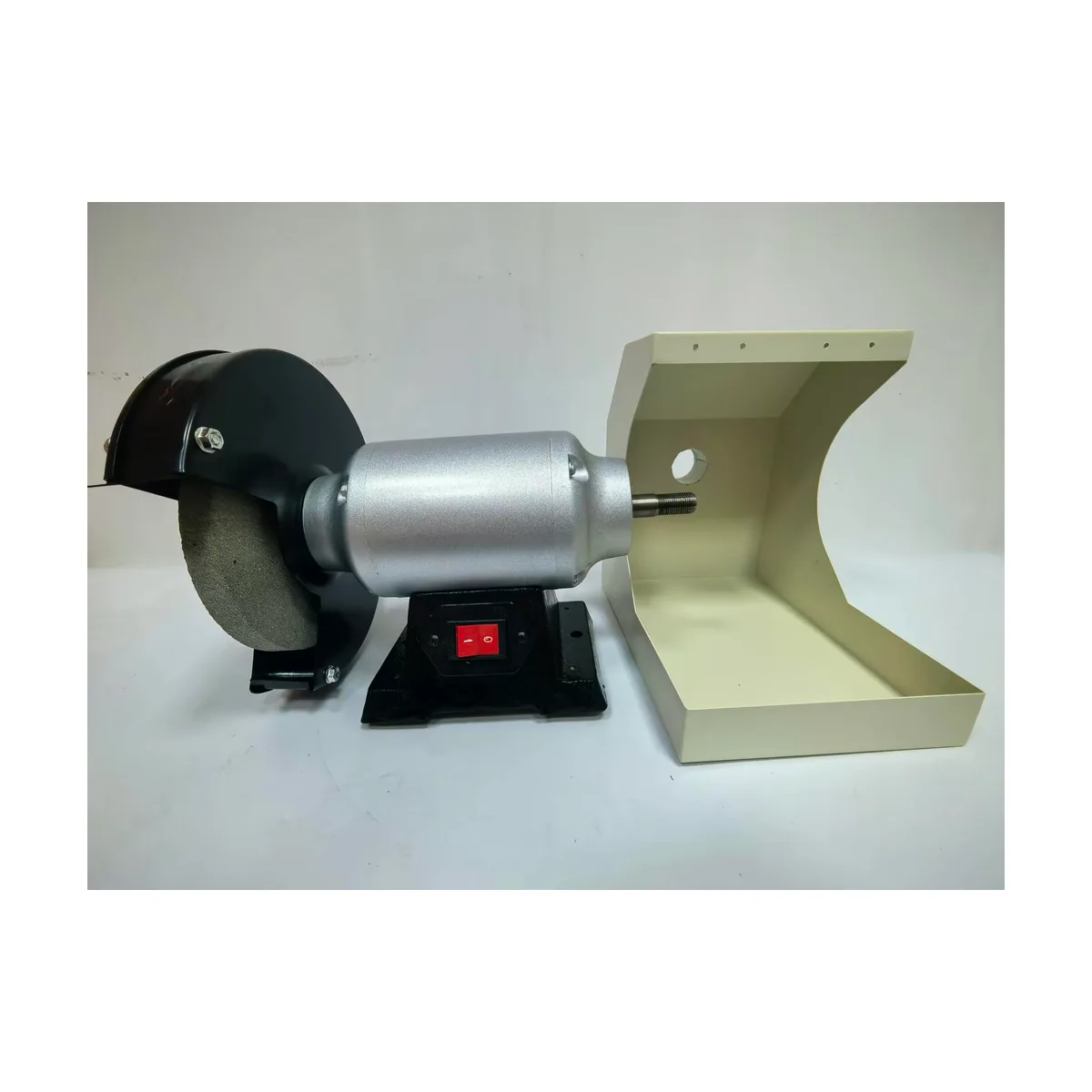

An adjustable organic-glass shield mounts on the wheel guard to deflect dust, and the dust cover behind the right spindle has a port for connecting an external vacuum or dust collector. The base has fixing holes so the machine can be bolted down for stable, vibration-free running at its 3,000 rpm synchronous speed.

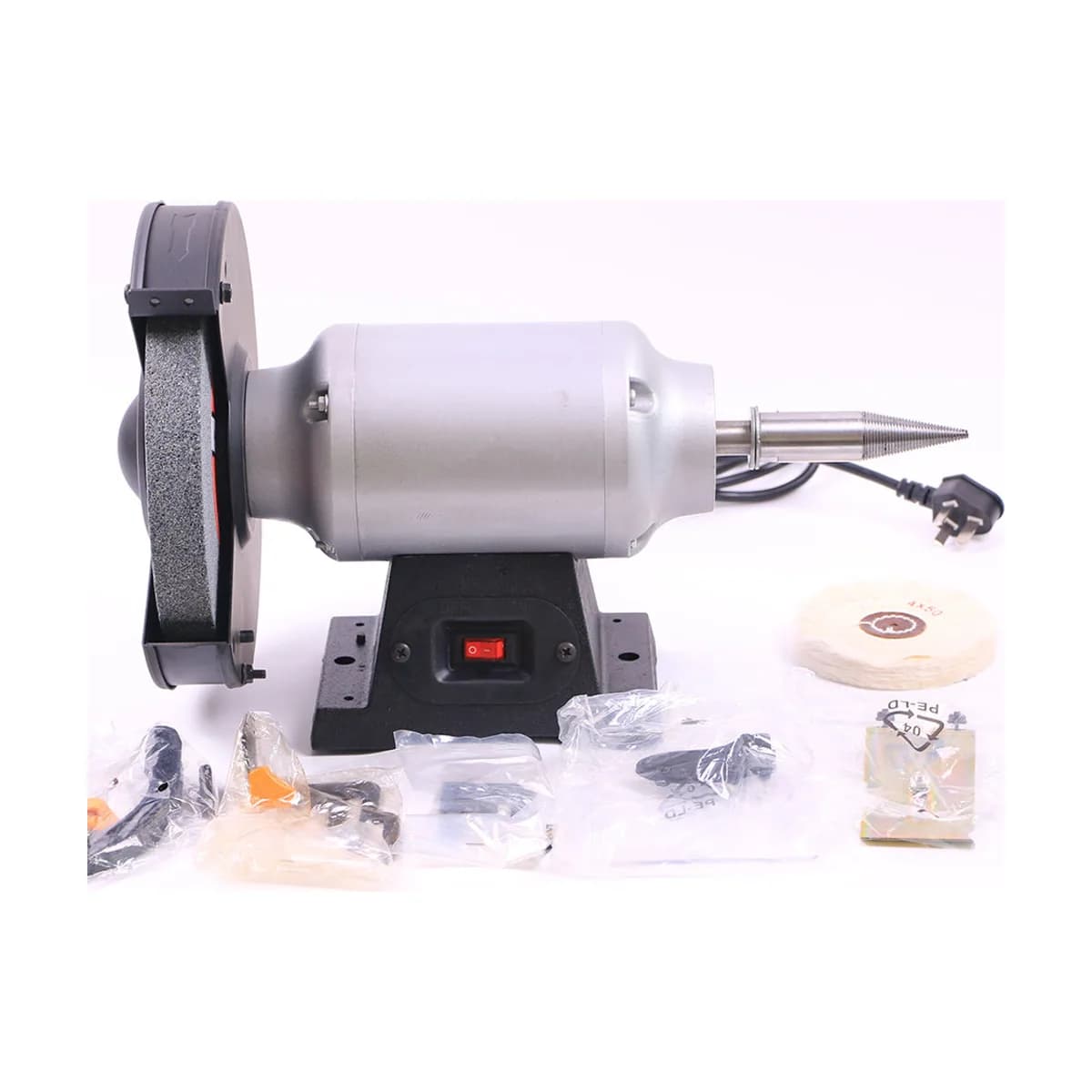

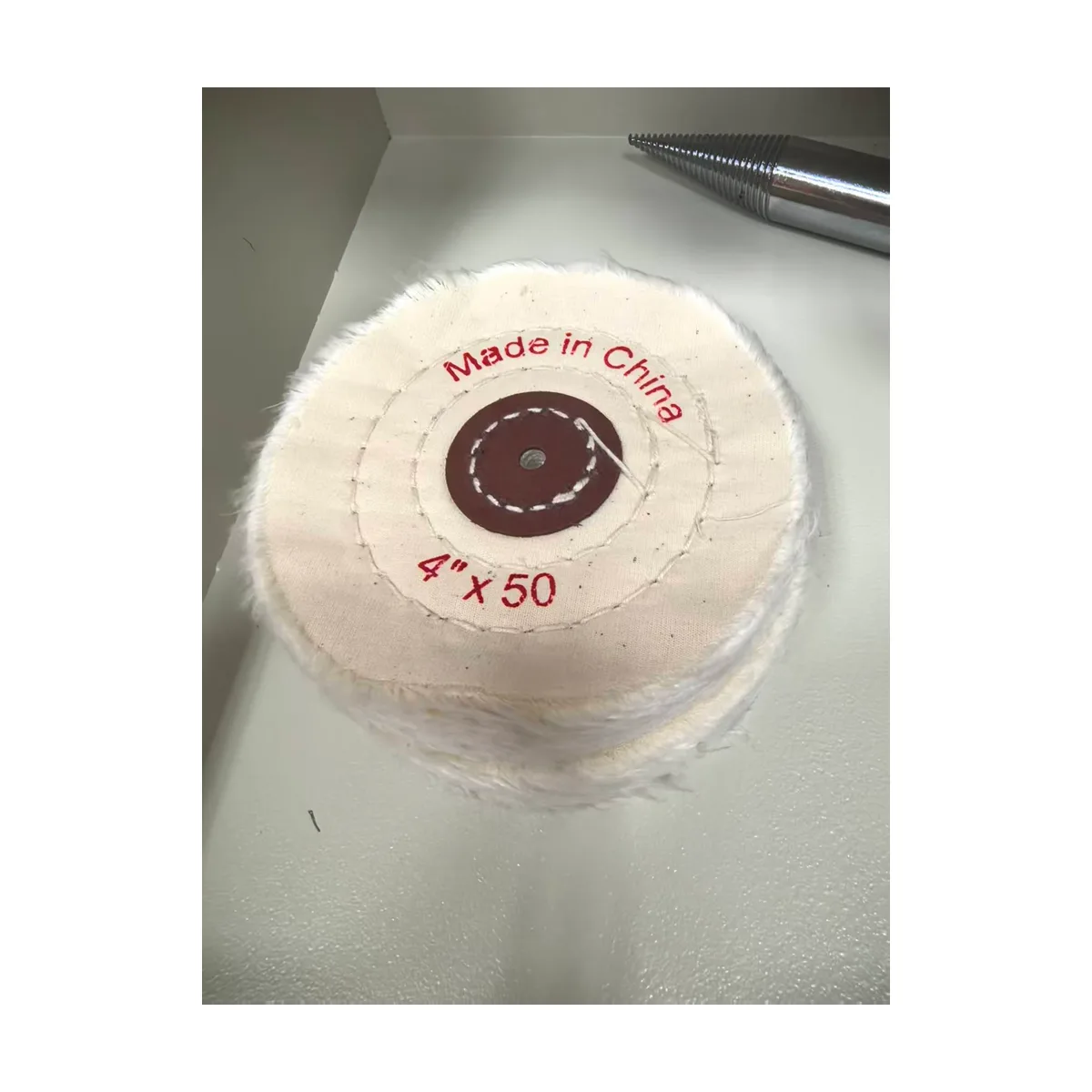

The machine is supplied with the dust cover, cloth buffing wheel, deflector plate and clip, and spindle screw. The manual specifies use below 1,000 m altitude, at -15 to 40 °C ambient, and up to 95% relative humidity, with insulation resistance above 1 MΩ.
