LZSC-I Model Arch Trimmer: Lingual Internal Grinder — image 1 of 5
Model Arch Trimmer
LZSC-I Model Arch Trimmer: Lingual Internal Grinder
Benchtop arch trimmer with carbide burrs for grinding the inner (lingual) side of dental gypsum models.
SKU FD-LZSC1-ARCHMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–4
- $85.00
- 5–19
- $80.00
- 20+
- $75.00
Specification
- Power supply
- AC 220V/50Hz
- Power consumption
- 180W
- DC output voltage
- 20V
- DC output current
- 10A
- Speed
- 2800 rpm
- Package dimensions
- 28×24×26cm
Why this unit

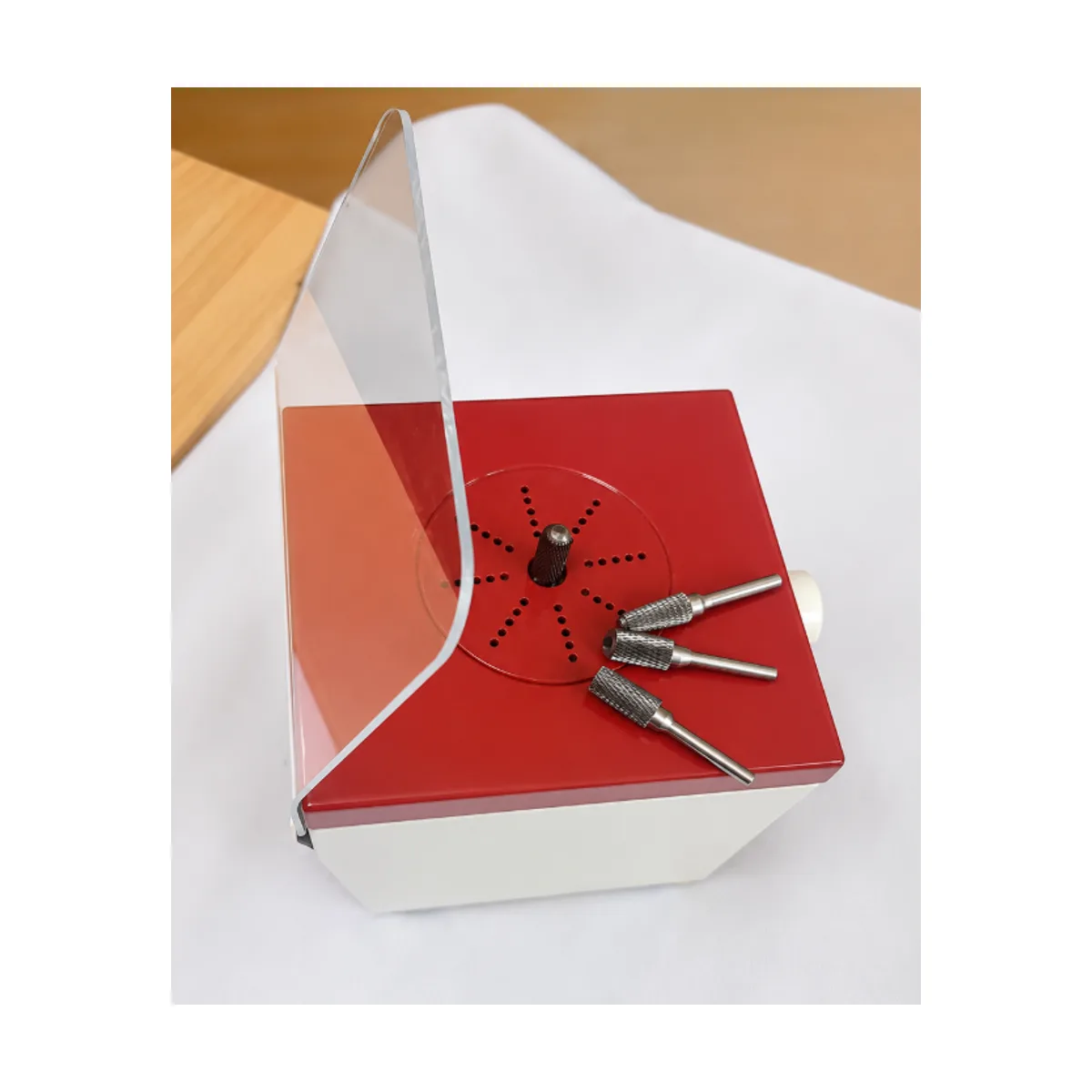

The LZSC-I is a benchtop arch trimmer developed for a specific step in model work: grinding the inner, lingual side of gypsum models when separating and finishing them. It uses dedicated carbide burrs, which the documentation credits with noticeably higher efficiency and longer service life than ordinary abrasive points.

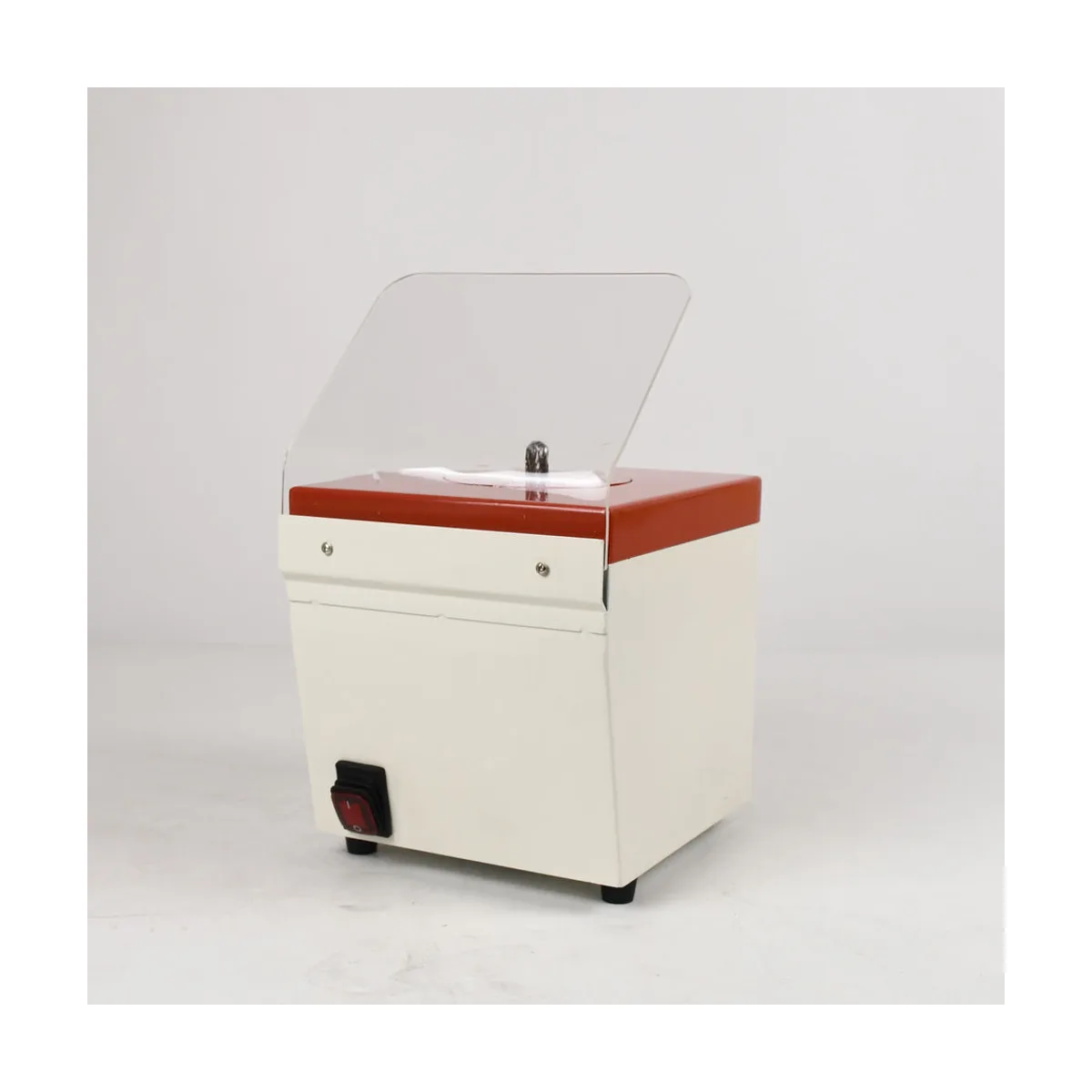

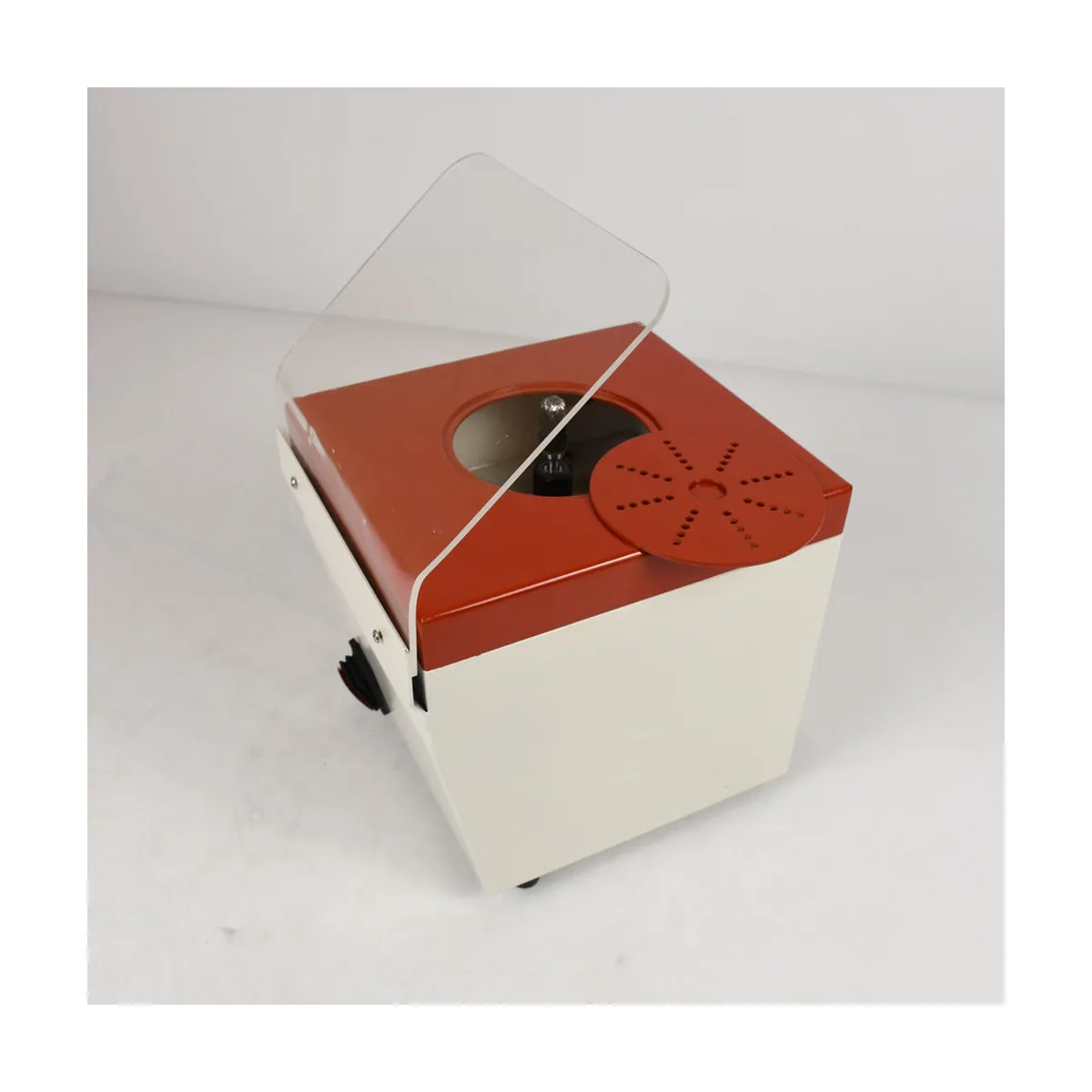

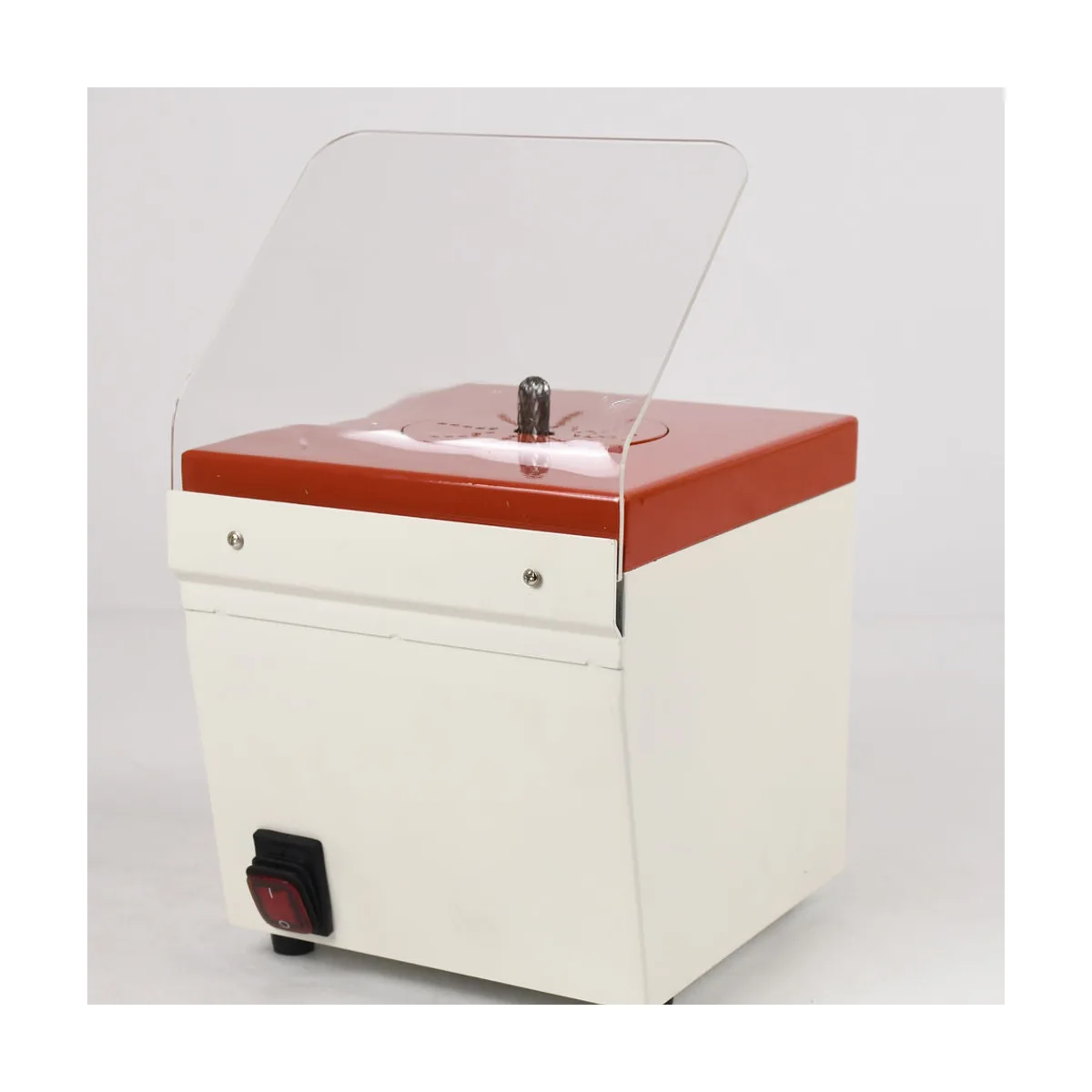

The burr spins at 2800 rpm under a clear splash guard on the red top plate; a side port allows debris extraction, and the machine sits on rubber feet with a single rocker switch to start the burr. The unit runs from a DC drive stage rated at 20V / 10A output.
Upkeep is simple: after each use, clean plaster debris out of the chamber and especially around the motor shaft so rotation resistance stays low.
