LZSG-V Wet/Dry Model Trimmer: 750W Full Sand Disc — image 1 of 5
Wet Model Trimmer
LZSG-V Wet/Dry Model Trimmer: 750W Full Sand Disc
750W wet/dry dental model trimmer with a 250 mm full sand disc for grinding and shaping gypsum models.
SKU FD-LZSG5-TRIMMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–4
- $300.00
- 5–19
- $280.00
- 20+
- $260.00
Specification
- Voltage
- 220V 50Hz / 110V 60Hz
- Power
- 750W
- Disc size
- 250mm OD × 32mm ID
- Rotational speed
- 2800r/min
Why this unit

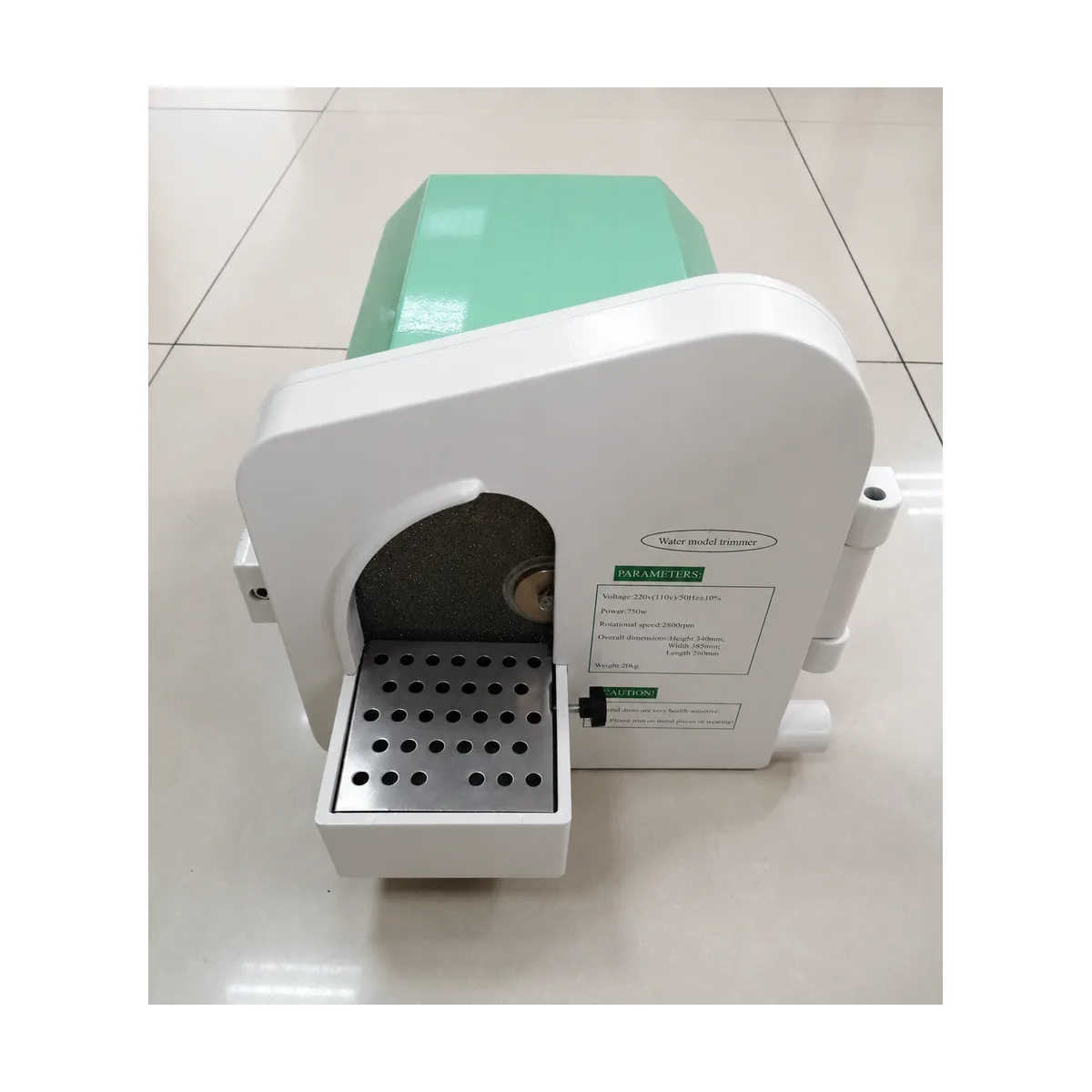

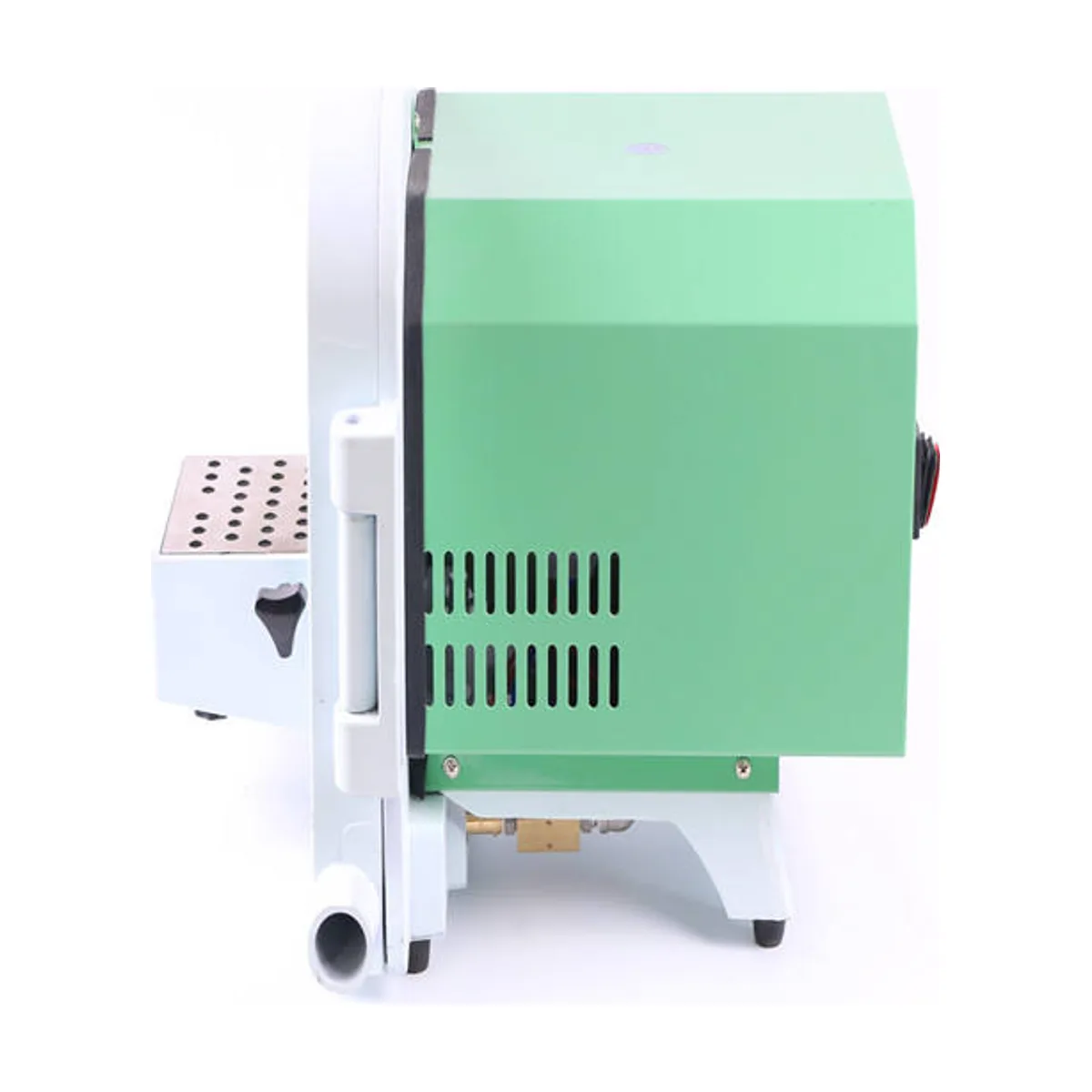

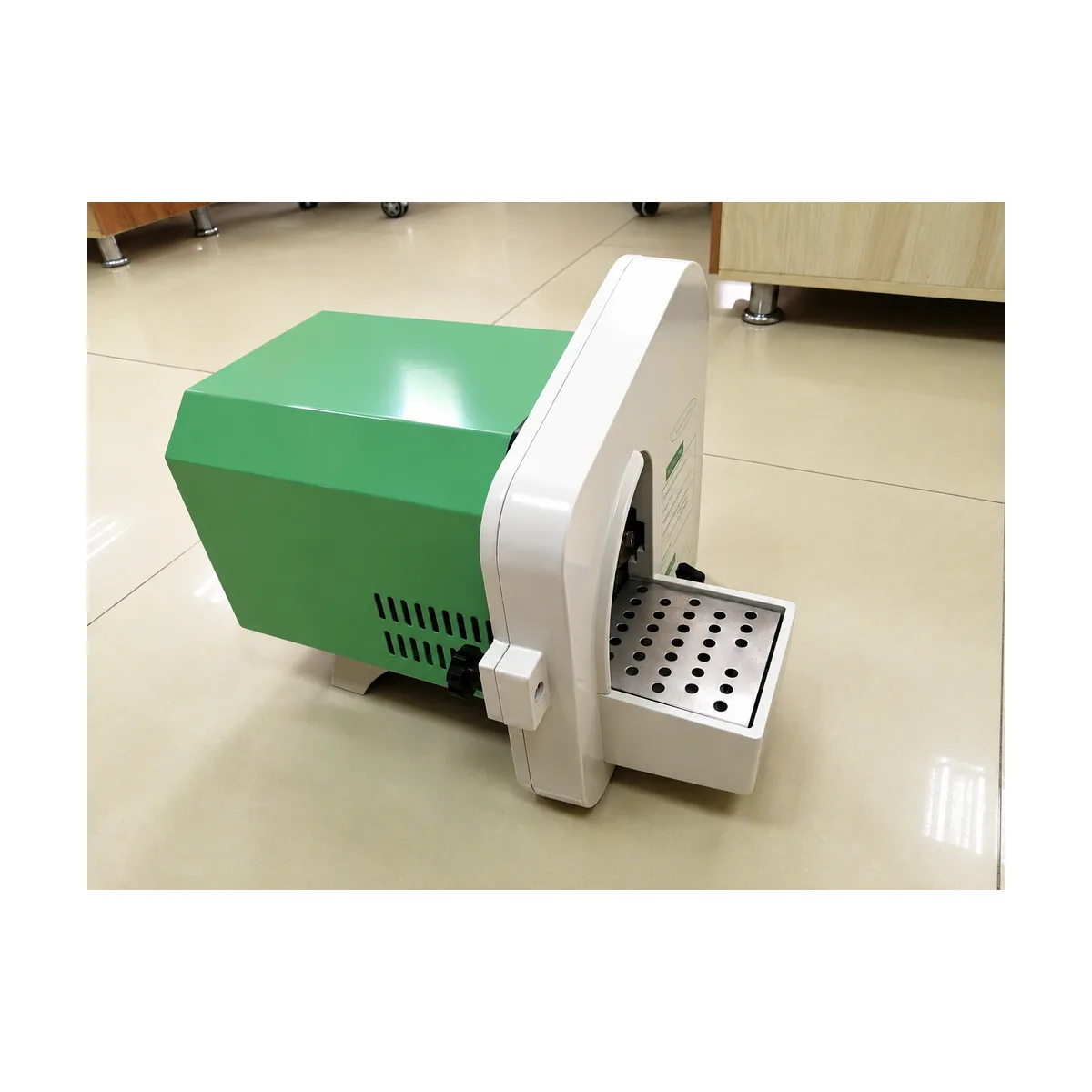

The LZSG-V is a benchtop model trimmer used in dental restoration laboratories to grind, trim and shape gypsum models. It runs a 250 mm full sand disc at 2800 rpm on a 750W motor, with an all-aluminum housing and a perforated stainless work table in front of the disc.

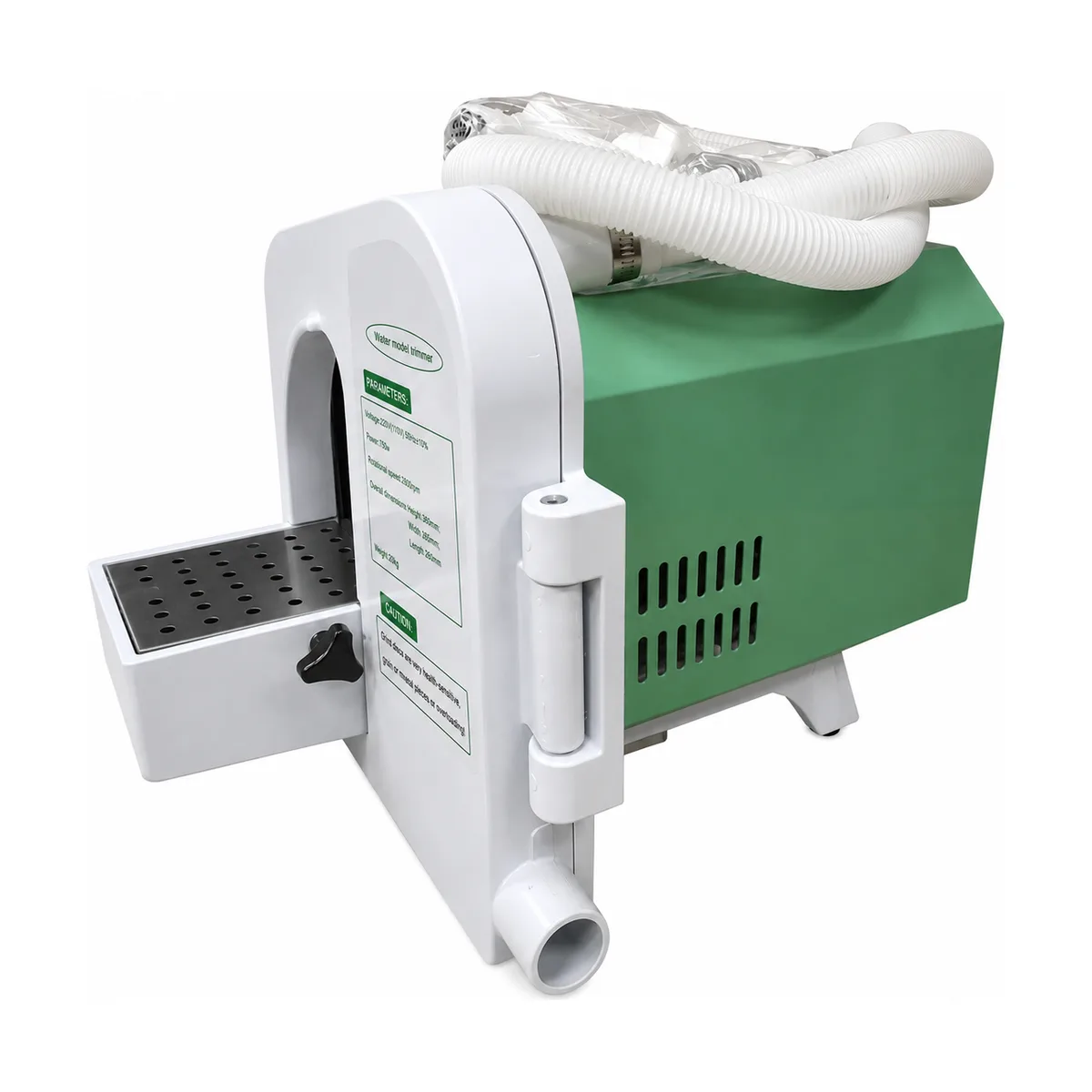

The machine works wet or dry. For wet trimming, an inlet hose connects to a water tap and a drain hose carries slurry out through the port at the base; for dry grinding, a vacuum cleaner is connected instead. The work table angle adjusts smoothly, allowing model bases to be ground at angles between 75 and 105 degrees.
Routine care is simple but important: plaster residue inside the cabinet has to be flushed out regularly so drainage stays clear, and the drain hose must lie flat so water cannot pool in the machine and splash during grinding.
