LZSG-VI Wet Model Trimmer: Diamond Disc — image 1 of 5
Model Trimmer, Diamond Disc
LZSG-VI Wet Model Trimmer: Diamond Disc
Wet dental model trimmer fitted with a diamond disc and synchronized water supply for grinding and shaping gypsum models.
SKU FD-LZSG6-DIAMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote
Volume pricing
- Quantity
- Unit price
- 1–9
- $204.61
- 10–49
- $174.96
- 50+
- $160.13
Specification
- Power supply
- 220V 50Hz
- Power
- 550W
- Water supply pressure
- not less than 0.5 kg/cm²
- Water pressure limit
- must not exceed 2 kg/cm²
Why this unit

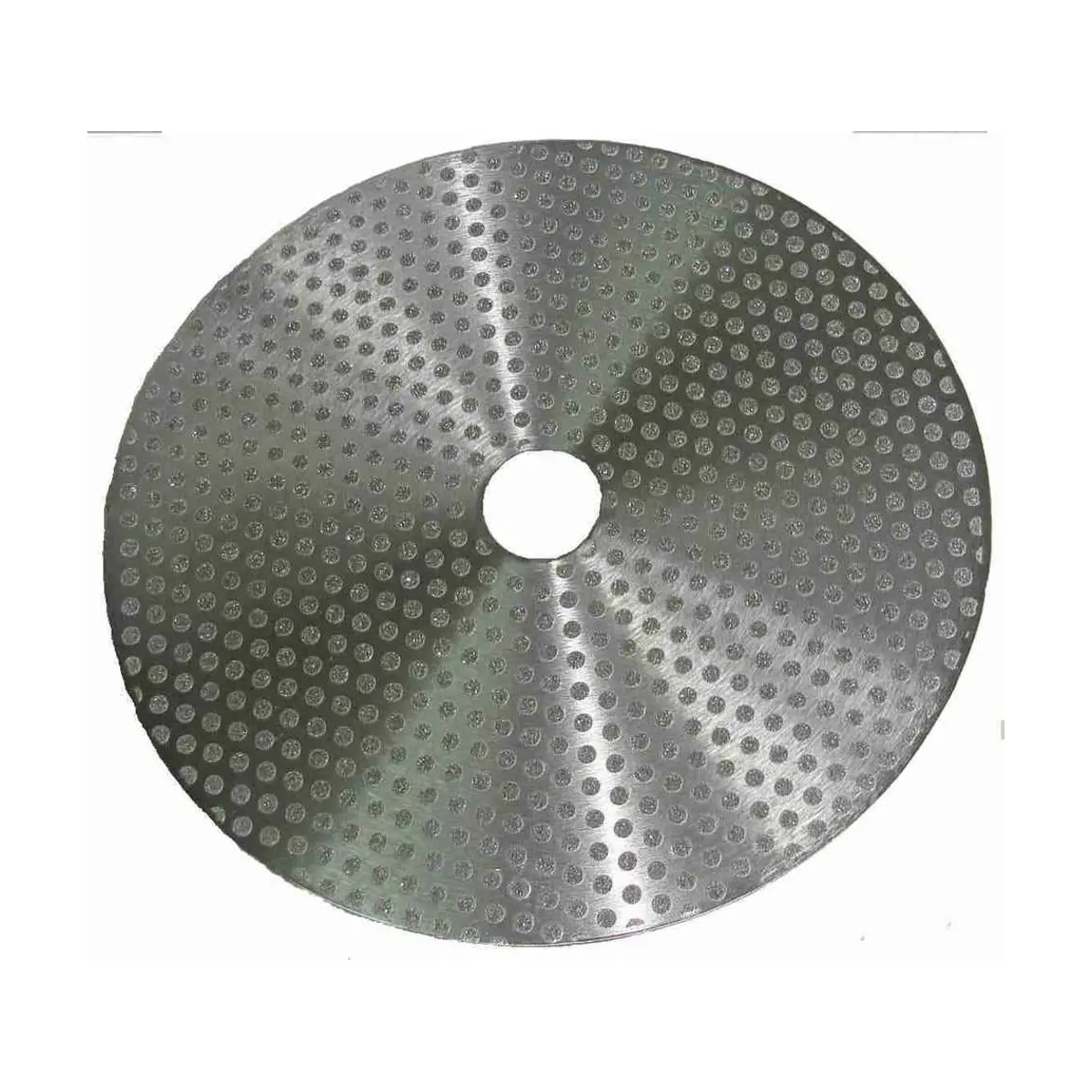

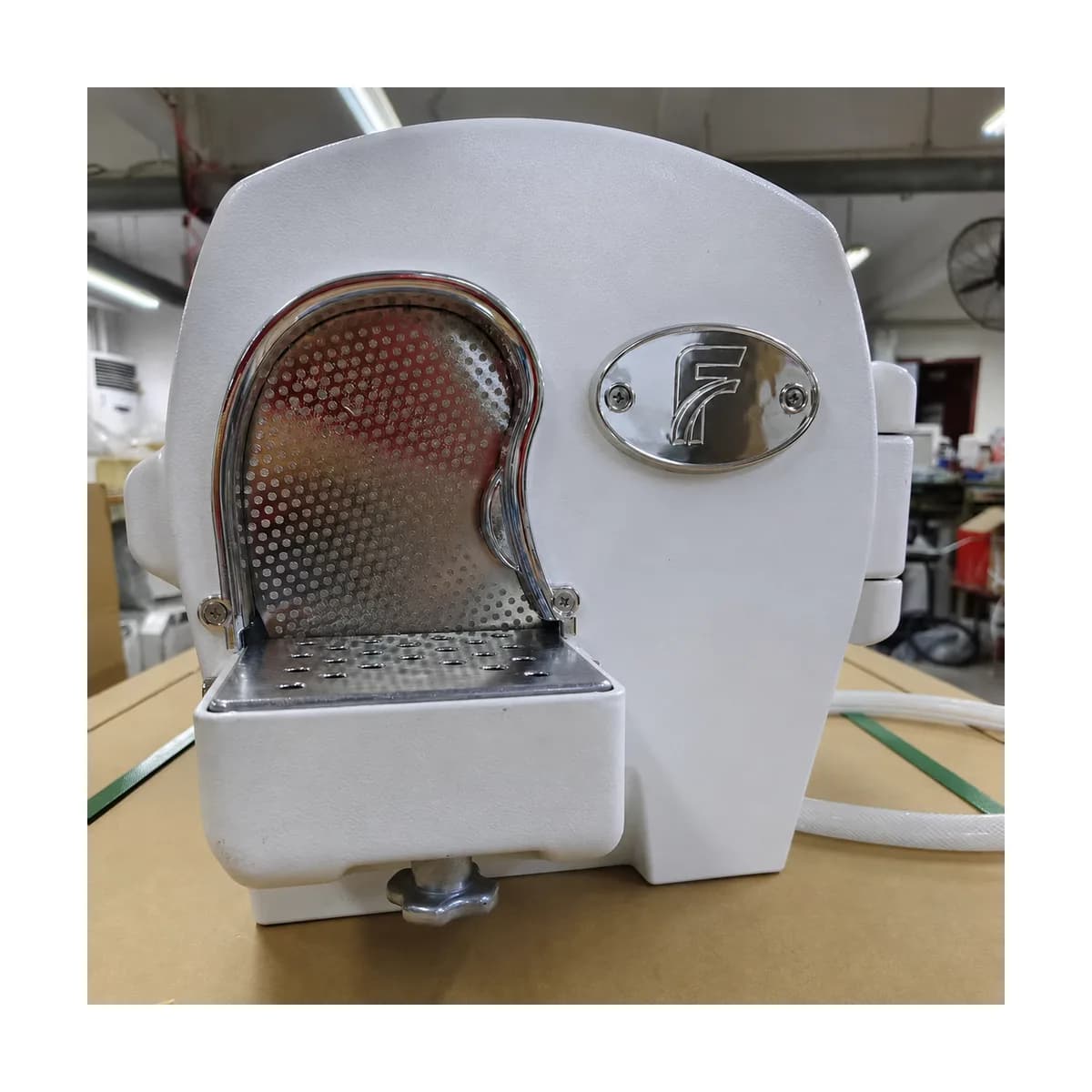

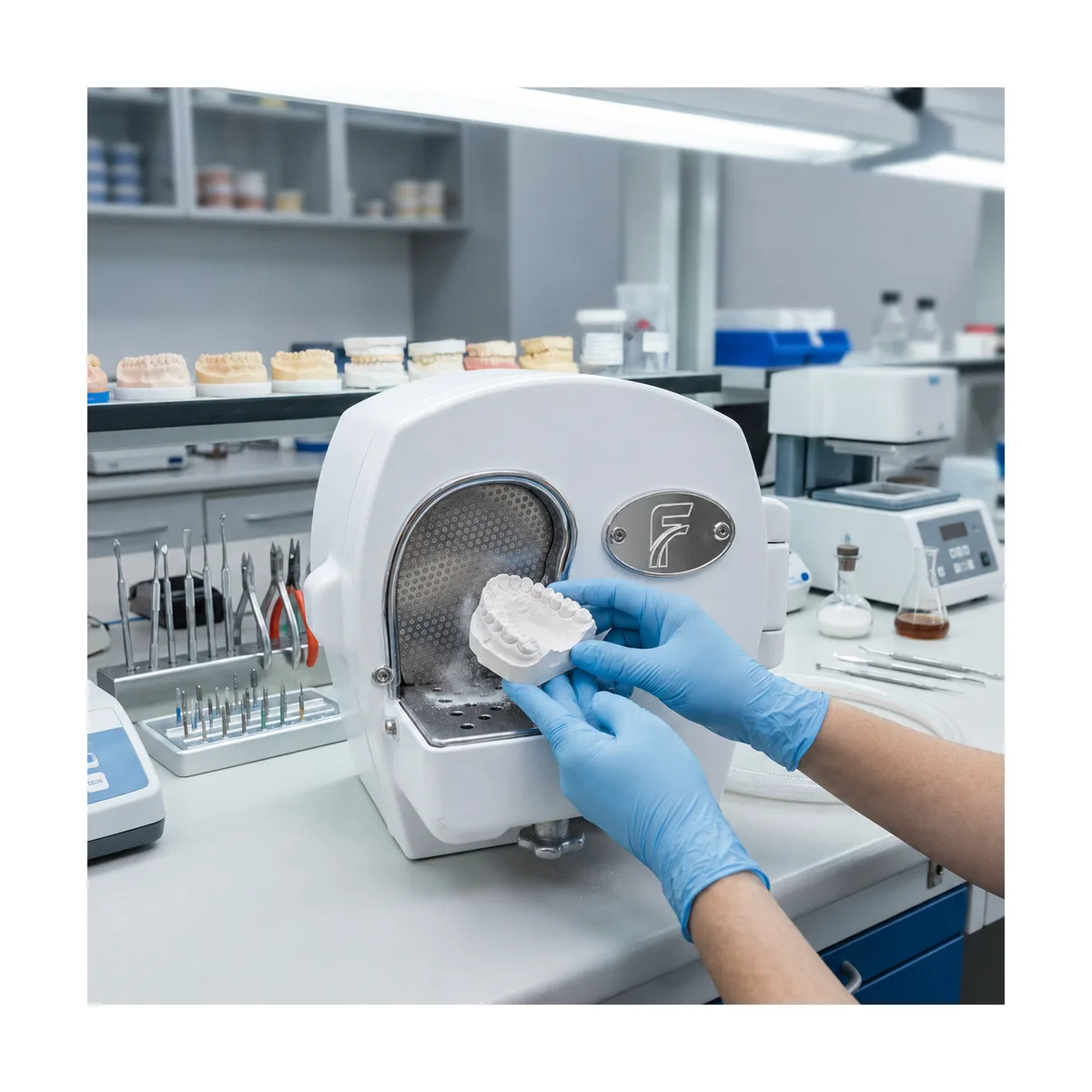

The LZSG-VI is a wet model trimmer used in dental restoration laboratories for grinding, trimming and shaping gypsum models. This variant is fitted with a diamond disc behind a chrome-edged guard, with a perforated stainless work table in front of it.
The unit is the upgraded water-power synchronized version: once the water tap is open, water flows automatically while the machine runs, keeping dust down and washing plaster residue off the disc. The work table angle adjusts smoothly, so model bases can be ground at angles between 75 and 105 degrees.
Two operating limits matter for this machine: it must never be run dry, because plaster powder will glaze the disc, and the supply water pressure must stay at or below the stated limit. Plaster debris inside the cabinet should be flushed out regularly so drainage stays clear.
