Induction Casting Machine
LZZP-1 Induction Casting Machine: Medium Frequency, Air-Cooled
Floor-standing medium-frequency induction casting machine for melting and centrifugally casting dental alloys up to 50 g.
SKU FD-LZZP1-CASTMade to order · Ships from Tianjin, China
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Prices as published by Fidara Dental Supply. Freight, duties and local charges are not included.
Need volume pricing or a fit-out quote? Request a quote

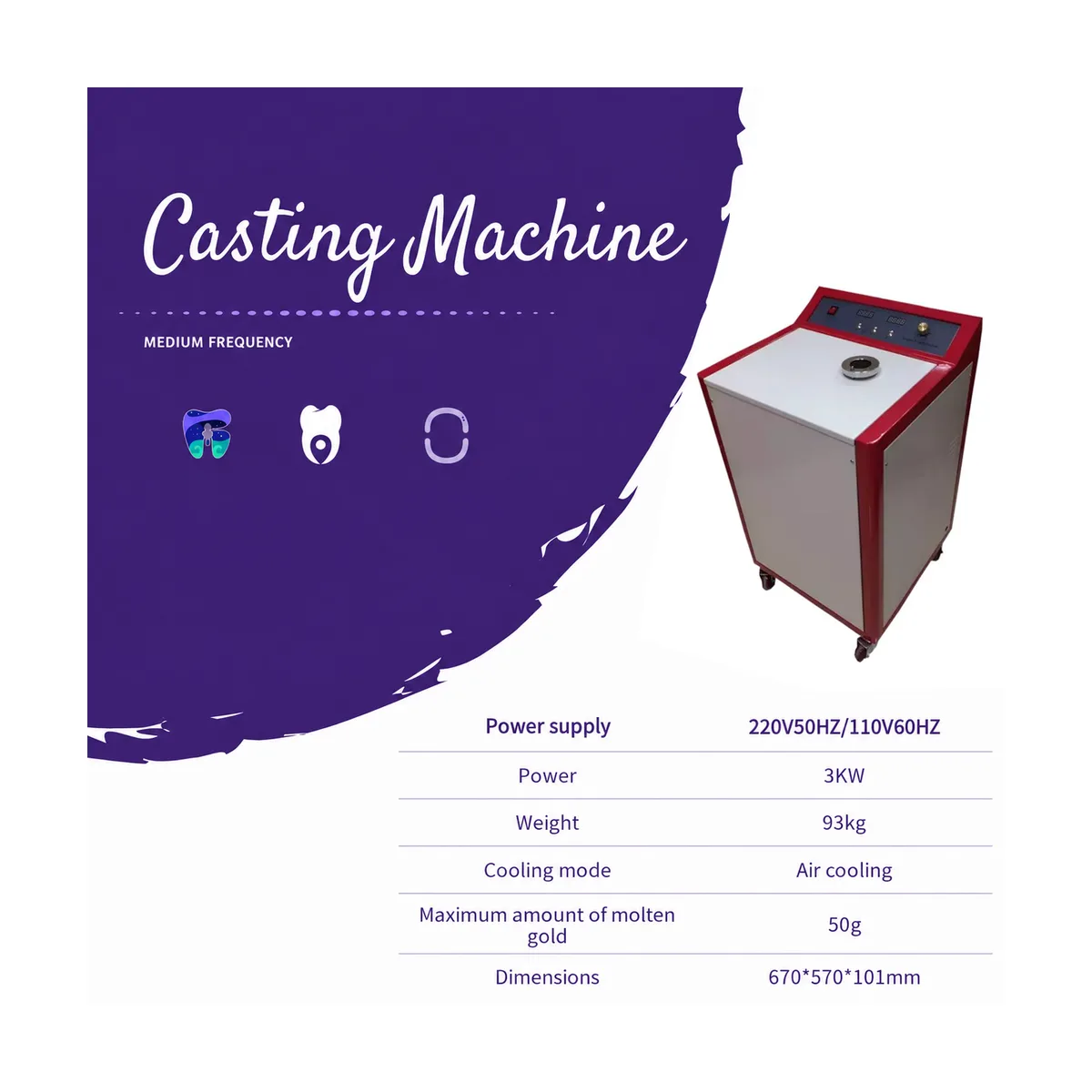

Specification
- Power supply
- AC 220 V, 50 Hz, single phase (install a voltage regulator where line voltage runs high)
- Input power
- 3 kVA
- Centrifugal motor
- 0.37 kW
- Grounding resistance
- ≤ 4 Ω
- Max melting capacity
- 50 g
- Cooling
- Air-cooled
Why this unit
The LZZP-1 is a medium-frequency induction casting machine for prosthetic and orthodontic laboratory work. It melts precious and base alloys such as cobalt-chromium and nickel-chromium and casts them centrifugally, covering removable partial denture frameworks, cast crown and bridge bases, metal-ceramic substructures and clasps.

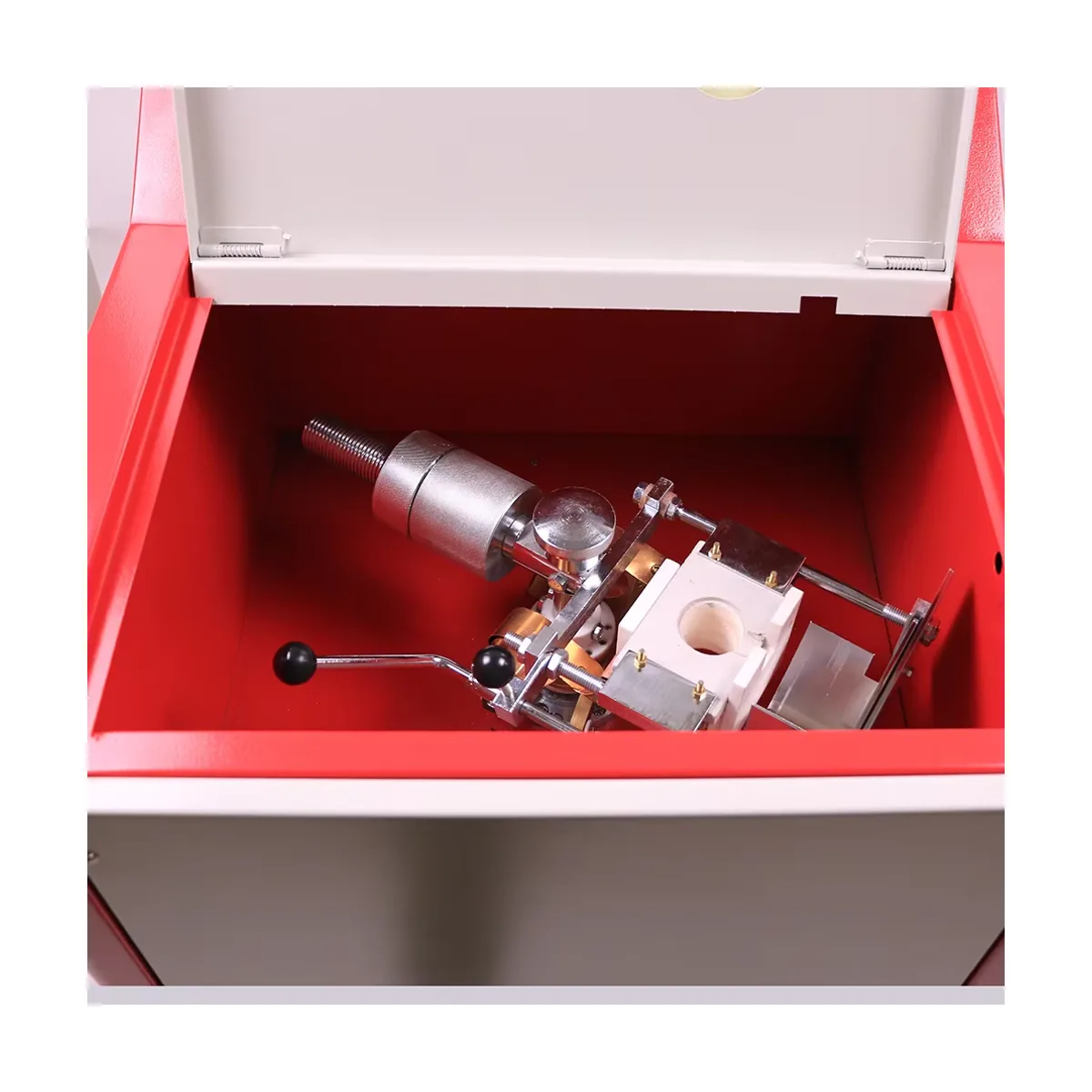

An all-transistor medium-frequency circuit drives the work coil, with a voltage selector and front-panel current and voltage meters for matching power to the alloy type and weight. The crucible sits inside the work coil on a balanced centrifugal arm; once the melt is complete, pressing the cast button spins the arm for three to five seconds to drive the metal into the mold. No preheating is needed, and the interval between melting and casting is about two minutes.

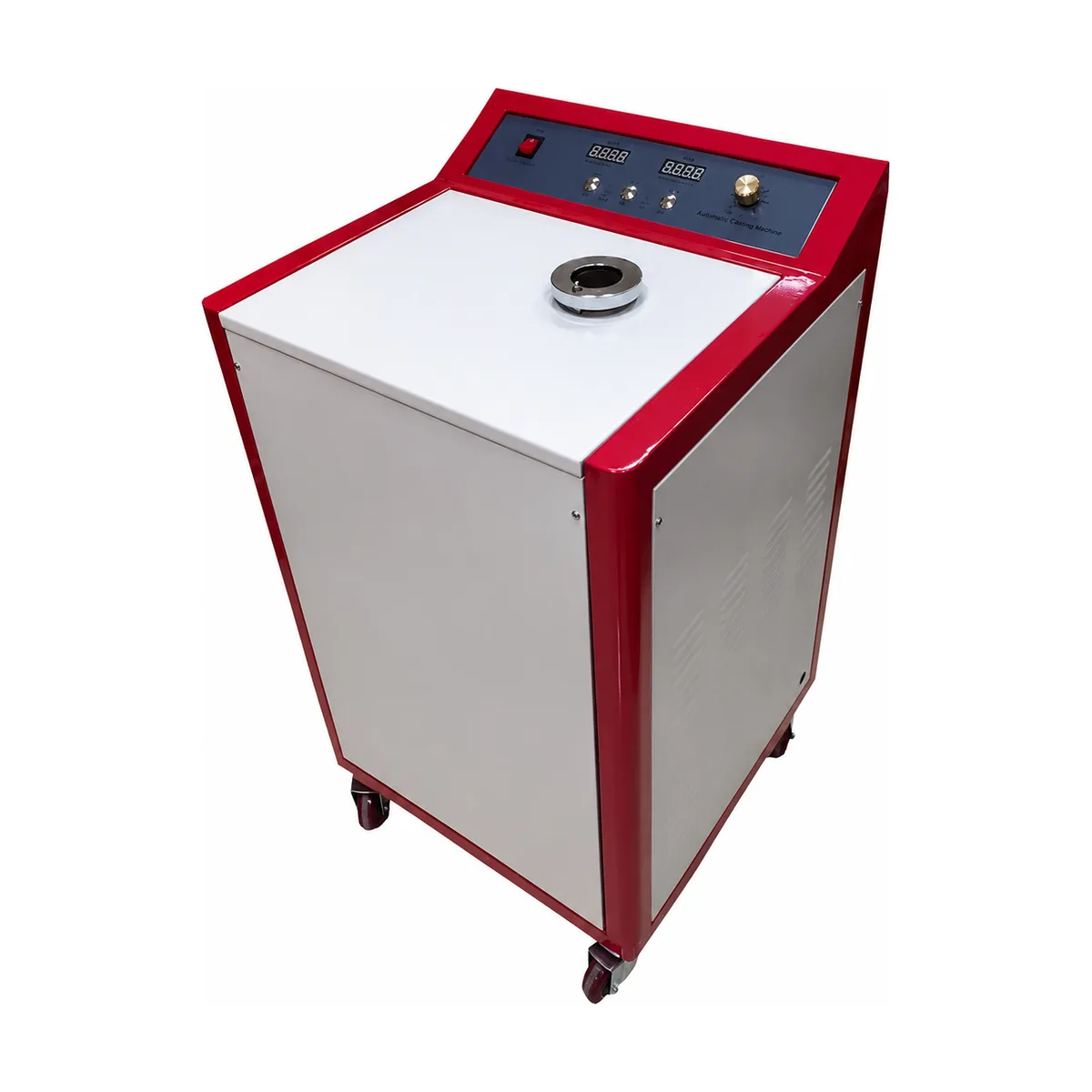

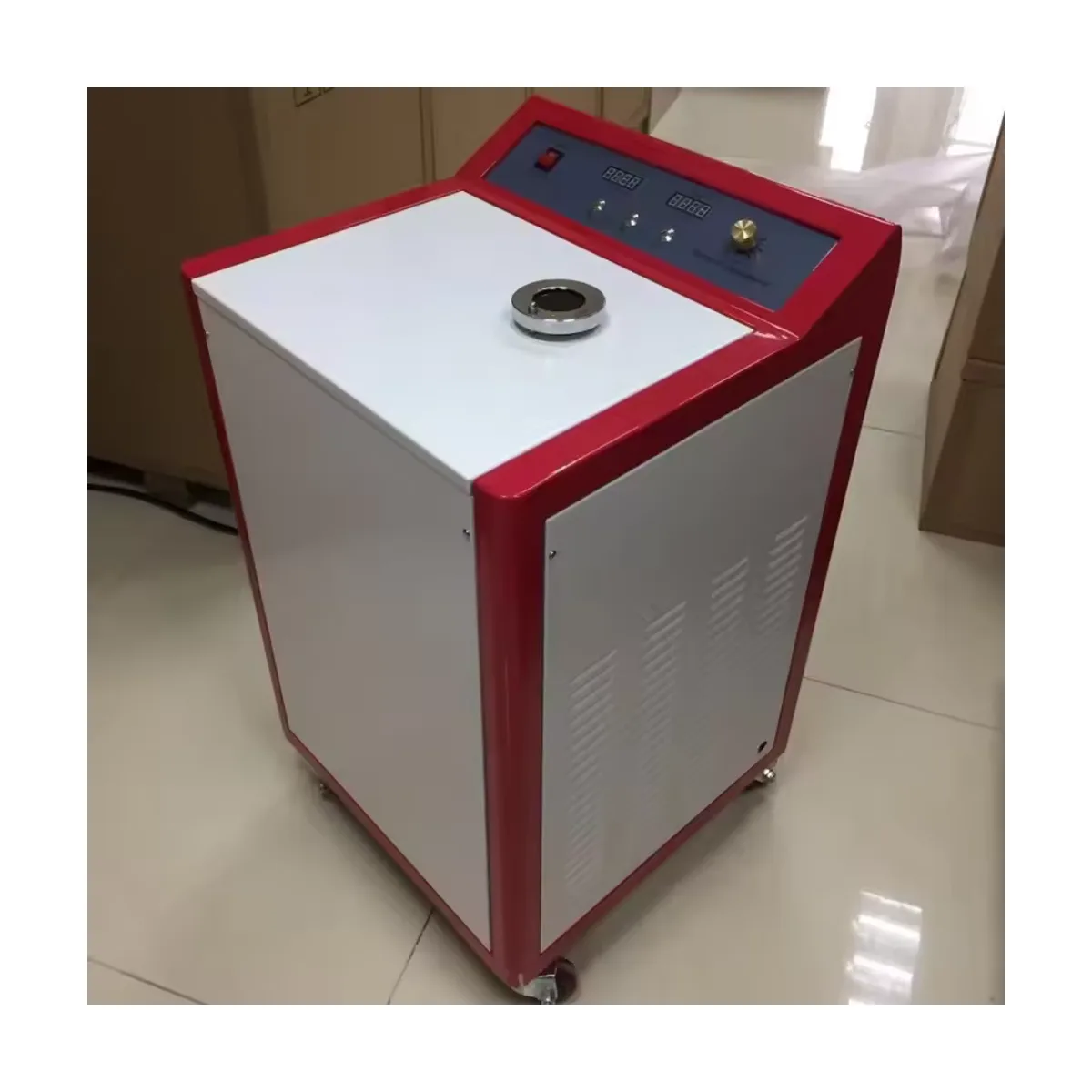

The caster-mounted cabinet is air-cooled and runs from a single-phase 220 V supply. An observation window plus over-temperature and over-current protection support routine day-to-day casting in the dental lab.
